Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10450312 Extusion, Mt Kpr Frt Appelez-nous -
2 10681402 Rail, Pntd Appelez-nous -
3 Y10370054 Glass, Full Shelf Appelez-nous -
3 Y10370015 Usr 10370097 (18) Appelez-nous -
4 10459802 Extr, Rear Shelf Appelez-nous -
4 10459803 Extrusion, Rear Shelf Appelez-nous -
5 10562502 Ext, Gl Shelf Side Appelez-nous -
6 10551402 Extr. Mt Kpr Rear Appelez-nous -
7 10417301 Glide, Meat Kpr. Appelez-nous -
8 10432101 Glide, Meat Kpr. Appelez-nous -
9 10417114 Pan, Mt Kpr Appelez-nous -
10 10459907 Extrusion, Frt Shelf Appelez-nous -
11 10460101 Shelf, Glass Frame Appelez-nous -
11 10460104 Frame, Glass Shelf (full) Appelez-nous -
12 10370014 Glass, Shelf (18-19) Appelez-nous -
13 WPW10348409 Mounting Screw   (Replaces: M0237921) In-Stock Immediately $ 8.20


    View Diagram in Separate Window     Print Icon   Print Part List

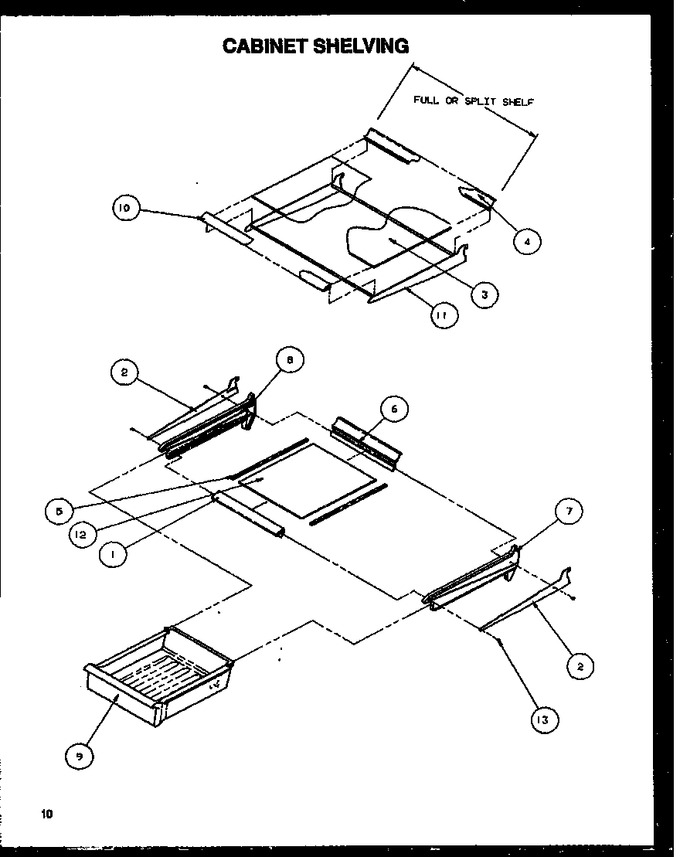

Diagram for TA18R2L (BOM: P1158306W L)
