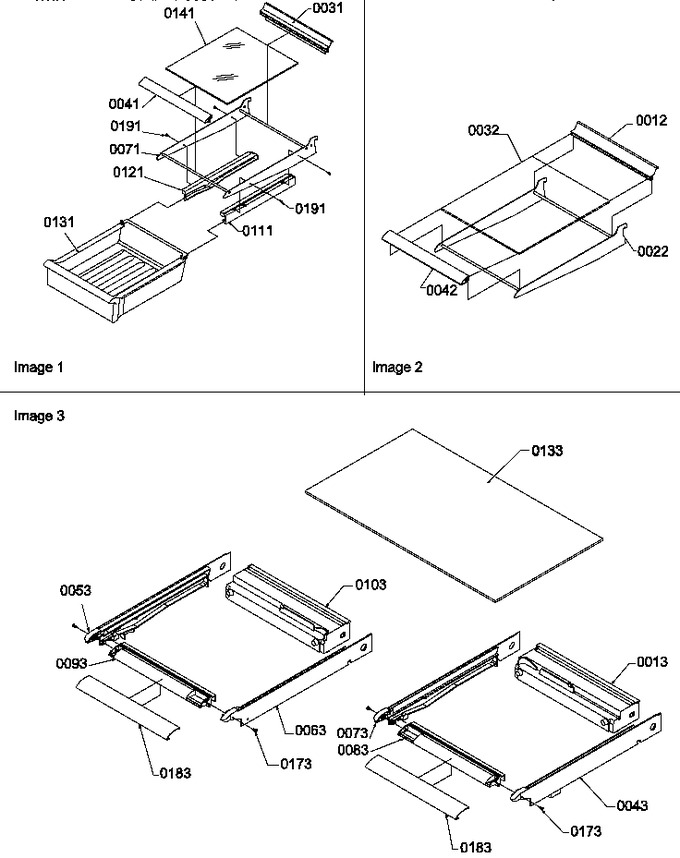

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10946001		Extr, Rear Shelf		Appelez-nous	-
12	10459806		Extr, Rear Shelf		Appelez-nous	-
13	10433804		Rail, Crisper Back		Appelez-nous	-
22	10460102		Shelf, Deli Frame		Appelez-nous	-
22	10460105		Shelf, Glass Frame		Appelez-nous	-
31	10946001		Extr, Rear Shelf		Appelez-nous	-
32	10370096		Glass, Shelf		Appelez-nous	-
32	Y10370079		Glass, Shelf		Appelez-nous	-
41	10459927		Extr, Front Shelf		Appelez-nous	-
42	10459928		Extr, Front Shelf		Appelez-nous	-
42	10459927		Extr, Front Shelf		Appelez-nous	-
43	10432701		Rail, Side Crisper		Appelez-nous	-
53	10432702		Rail, Side Crisper		Appelez-nous	-
63	10432803		Rail, Ctr. Crisper		Appelez-nous	-
71	10460113		Shelf, Deli Frame		Appelez-nous	-
73	10432804		Rail, Ctr. Crisper		Appelez-nous	-
83	10687801		Rail, R. Crisper Frt		Appelez-nous	-
93	10687802		Rail, L. Crisper Frt		Appelez-nous	-
103	10435604		Rail, Crisper Back		Appelez-nous	-
111	12027201		Glide, R Deli				$ 64.15
121	12027101		Glide, L Deli		Appelez-nous	-
131	10417016		Pan-mk		Appelez-nous	-
133	10370012		Shelf, Glass				$ 86.24
141	10370096		Glass, Shelf		Appelez-nous	-
173	67006692		Screw, Hi Lo   (Replaces: M0237932)				$ 10.79
183	10688056		Extr-l Crisp Front		Appelez-nous	-
191	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
