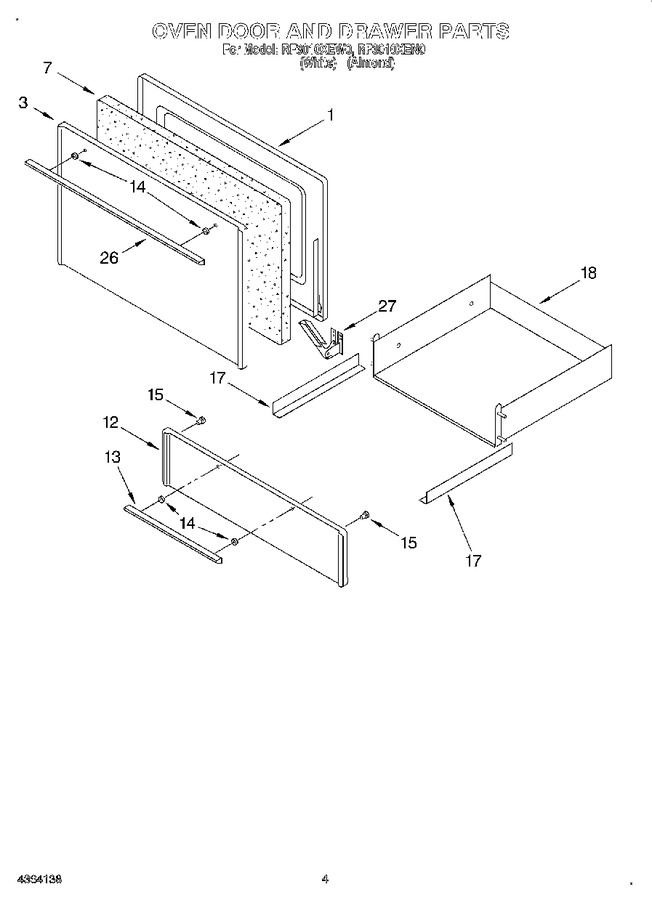

03 - Oven Door And Drawer


04 - Backguard, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364049		Liner, Door		Appelez-nous	-
3	4364051		Panel, Oven Door (almond)		Appelez-nous	-
3	4364050		Panel, Oven Door (white)		Appelez-nous	-
7	4364071		Insulation, Door		Appelez-nous	-
12	4364361		Panel, Drawer (white)		Appelez-nous	-
12	4364362		Panel, Drawer (almond)		Appelez-nous	-
13	4364054		Handle, Drawer		Appelez-nous	-
14	4364055		Spacer, Handle		Appelez-nous	-
14	4364057		Screw, 10-24 X 3/8		Appelez-nous	-
15	4364305		Bumper, Drawer		Appelez-nous	-
17	4364363		Broiler Drawer (left)				$ 45.32
17	4364364		Broiler Drawer (right)				$ 45.32
18	4364365		Body, Drawer		Appelez-nous	-
26	4364070		Handle, Oven Door		Appelez-nous	-
27	4364072		Hinge, Oven Door		Appelez-nous	-
