SELECT A DIAGRAM

01 - External, Lit/optional


02 - Internal

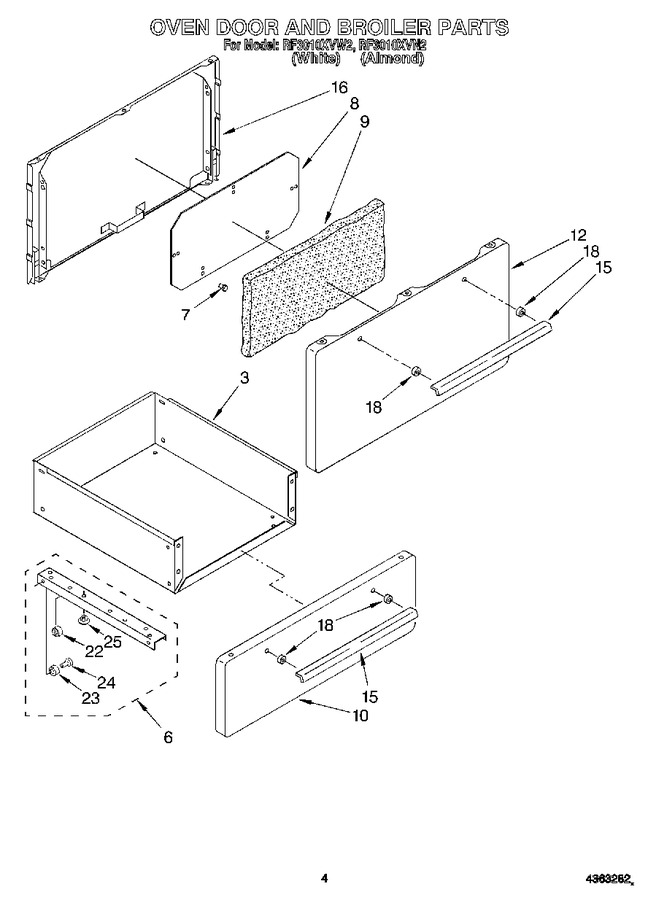

03 - Oven Door And Boiler


04 - Cooktop And Backguard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	4315499		Drawer, Storage		Appelez-nous	-
6	4364024		Track, Upper (right Hand)				$ 74.85
6	4364023		Track, Upper (left Hand)		Appelez-nous	-
7	4157128		Bumper, Rubber (2)		Appelez-nous	-
8	4320352		Plate, Hold Down		Appelez-nous	-
8	WP681414		Screw, 10-12 X 1/2 (5)   (Replaces: 4157114)			Immediately	$ 7.62
9	4157033		Insulation		Appelez-nous	-
10	4320527		Panel, Drawer (white)		Appelez-nous	-
10	WP308685		Panel, Drawer (screw, 10-12 X 1/2 (5))   (Replaces: 4157117)			Immediately	$ 7.08
10	4320528		Panel, Drawer (almond)		Appelez-nous	-
12	4363281		Panel, Oven Door (almond)		Appelez-nous	-
12	4363220		Panel, Oven Door (white)		Appelez-nous	-
15	4320579		Screw, Handle 10-24 X 5/8 (4)		Appelez-nous	-
15	4157040		Handle (2)		Appelez-nous	-
16	4321254		Liner, Oven Door		Appelez-nous	-
18	4157041		Spacer, Handle (4)		Appelez-nous	-
22	4315387		Bumper, Nylon (4)		Appelez-nous	-
23	4315388		Roller (2)		Appelez-nous	-
24	4363050		Roller Pin (2)		Appelez-nous	-
25	4315386		Button, Glide (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
