SELECT A DIAGRAM
01 - External, Lit/optional
02 - Internal
03 - Oven Door And Boiler

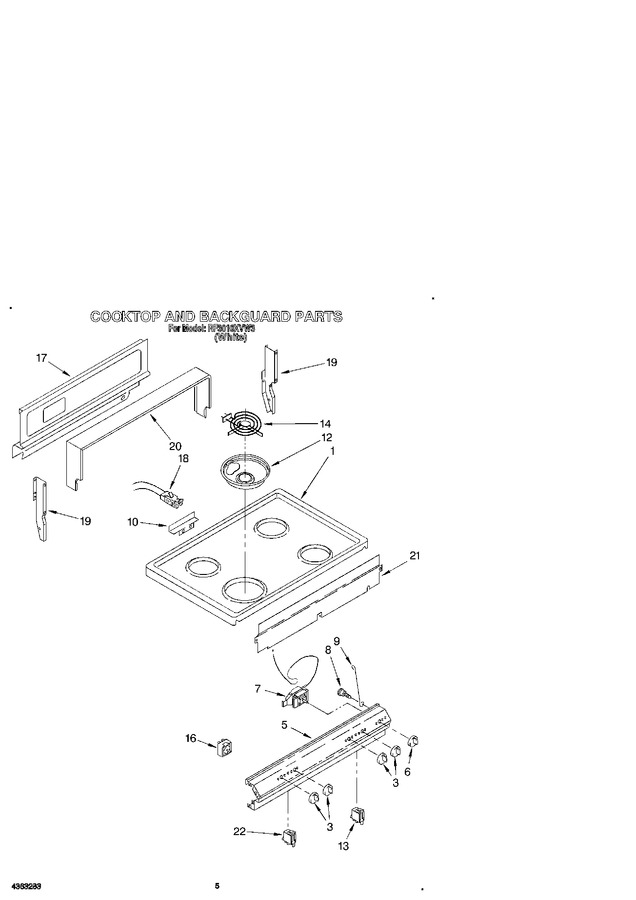

04 - Cooktop And Backguard
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4315216 | Cooktop (white) |
|
- | |||||
| 3 | 4179304 | Knob, Burner (4) |
|
- | |||||
| 5 | 4315215 | Panel, Manifold |
|
- | |||||
| 6 | 4179305 | Knob, Thermostat |
|
- | |||||
| 7 | 4314949 | Thermostat |
|
- | |||||
| 8 | 4157018 | Screw |
|
- | |||||
| 9 | 4157010 | Rod, Support |
|
- | |||||
| 10 | 4314992 | Bracket, Top Supt. |
|
- | |||||
| 12 | WPW10196406 | Bowl, Chrome (6``) (Replaces: 4157961) |
|
Immediately | $ 12.42 | ||||
| 12 | W10196405RW | Bowl, Chrome (8``) (Replaces: 4157960) |
|
Immediately | $ 19.64 | ||||
| 13 | 4314996 | Light, Indicator |
|
- | |||||
| 14 | 4315619 | Unit, Surface (6``) |
|
- | |||||
| 14 | 4315620 | Unit, Surface (8``) |
|
- | |||||
| 16 | W10900107 | Switch, Infinite (4) (Replaces: 4314945) |
|
Immediately | $ 51.87 | ||||
| 17 | 4157158 | Panel, Backguard (white) |
|
- | |||||
| 18 | 330031 | Receptacle (Replaces: 4179038) |
|
Immediately | $ 17.93 | ||||
| 19 | 4157123 | Support, Backguard (screw, 10-32 X 1/2) |
|
- | |||||
| 19 | 4157159 | Support, Backguard (left Hand) |
|
- | |||||
| 19 | 4157160 | Support, Backguard (right Hand) |
|
- | |||||
| 20 | 4157121 | Screw, 10-12 X 3/8 (6) |
|
- | |||||
| 20 | 4314813 | Frame, Backguard |
|
- | |||||
| 21 | 4315214 | Cover, Switch |
|
- | |||||
| 22 | 4315030 | Light, Indicator (2) |
|
- |
