Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10282492 Rack, Oven (2)   (Replaces: 7801P054-60) In-Stock Immediately $ 72.39

2 WP3405F037-80 Drawer, Storage   (Replaces: 3405F033-80) Special Order $ 355.81

3 3801F887-51 Bracket, Drawer(2) Special Order $ 8.32

4 W10272883 Roller, Drawer Special Order $ 7.90

5 7118P032-60 Shaft, Roller Appelez-nous -
6 WP488130 Nut, Lock (w/washer)   (Replaces: 7103P082-60) Special Order $ 7.32

7 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 14.23

8 W10182835 Runner, Drawer Special Order $ 75.89

9 2416F059-71 Panel, Drawer Special Order $ 87.92

10 WP7101P072-60 Screw   (Replaces: 7101P072-60) Special Order $ 8.06

11 WPW10131078 Nut, Lock   (Replaces: 7103P139-60) Special Order $ 4.65


    View Diagram in Separate Window     Print Icon   Print Part List

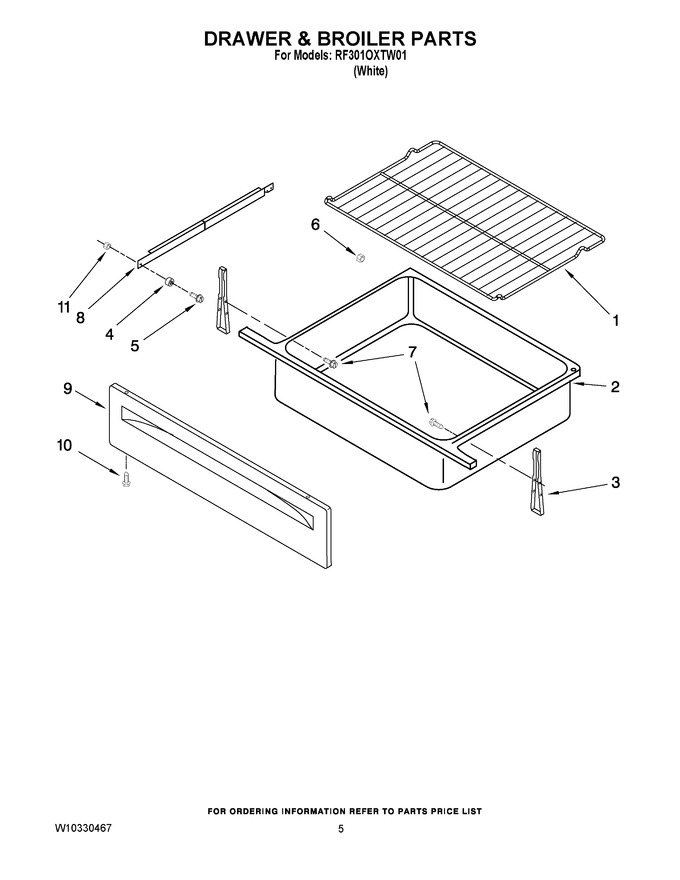

Diagram for RF301OXTW01
