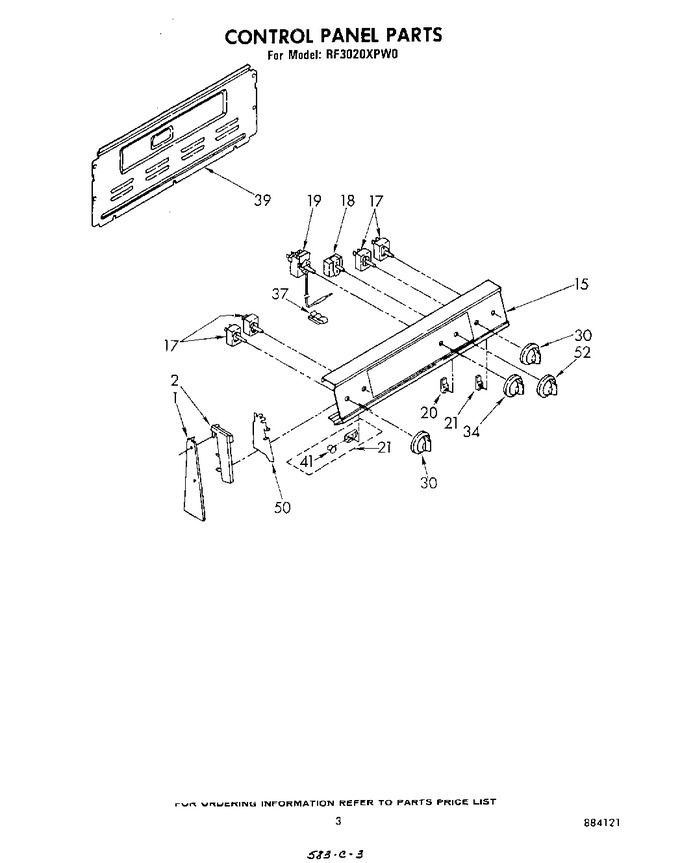

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.82
2	313230		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
15	313370		Panel, Control (white)		Appelez-nous	-
15	313374		Panel, Control (platinum)		Appelez-nous	-
15	313373		Panel, Control (toast)		Appelez-nous	-
15	313372		Panel, Control (harvest Gold)		Appelez-nous	-
15	313371		Panel, Control (almond)		Appelez-nous	-
15	WP681414		Panel, Control (screw, 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
15	312604		Panel, Control (screw, 8-18 X 5/8 (4))		Appelez-nous	-
17	WP3149404		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 311856)			Immediately	$ 61.45
17	WP3149400		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 311858)			Immediately	$ 90.51
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
18	313061		Switch, Selector (3 Position)		Appelez-nous	-
19	311498		Thermostat (alt.)		Appelez-nous	-
19	310864		Thermostat (alt.)		Appelez-nous	-
19	661150		Thermostat		Appelez-nous	-
20	313111		Light, Indicator (includes Illus. 41)		Appelez-nous	-
21	313102		Light, Indicator (surface Unit) (2) (includes Illus. 41)				$ 66.48
30	330177		Knob, Control (4)		Appelez-nous	-
34	330176		Knob, Control		Appelez-nous	-
34	310410		Screw (2)		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (18)   (Replaces: 343641)			Immediately	$ 7.85
39	313195		Rear Cover Control Panel		Appelez-nous	-
41	313101		Lens, Amber (3)		Appelez-nous	-
50	313608		Shield, Glass (2)		Appelez-nous	-
50	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
52	330180		Knob, Control		Appelez-nous	-
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60

    View Diagram in Separate Window       Print Part List
