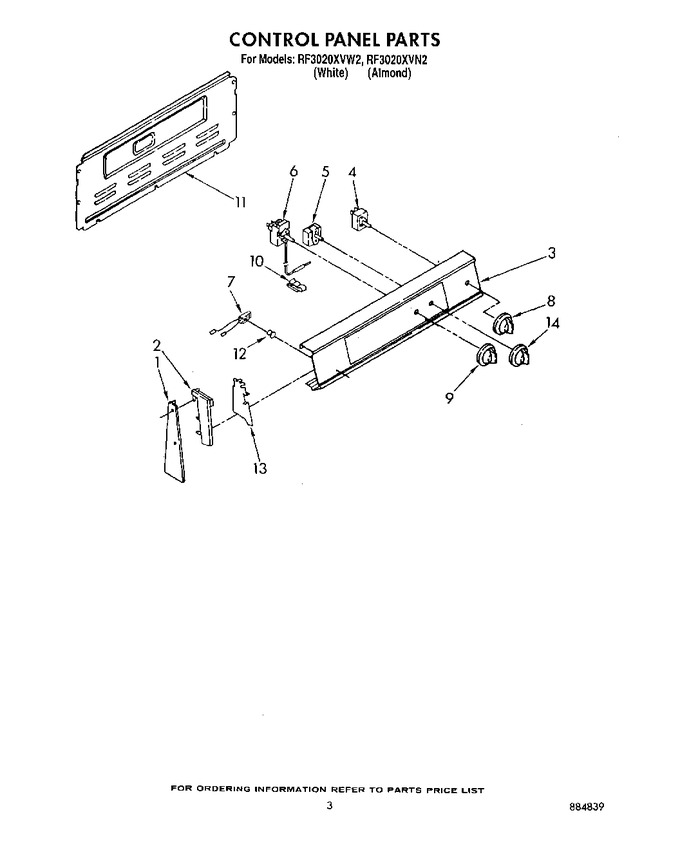

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
3	WP681414		Panel, Control (screw, 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
3	313370		Panel, Control (white)		Appelez-nous	-
3	313371		Panel, Control (almond)		Appelez-nous	-
3	312604		Panel, Control (screw, 8-18 X 5/8 (4))		Appelez-nous	-
4	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
4	5500-287		Switch, Infinite (use W/6`` Surface Unit (3))   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/8`` Surface Unit (1))   (Replaces: 3148953)			Immediately	$ 52.39
5	3148067		Switch, Selector (3 Position)		Appelez-nous	-
5	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
6	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
6	311498		(alt.)		Appelez-nous	-
6	310864		(alt.)		Appelez-nous	-
6	661150		Thermostat		Appelez-nous	-
7	313102		Light, Indicator (surface Unit On (2) (includes No.12))				$ 66.48
7	314031		Light, Indicator (oven On)				$ 62.88
8	WP3149983		Knob, Control (4) (infinite Switch)   (Replaces: 3149983)				$ 23.23
9	3149987		Knob, Control (thermostat)				$ 25.12
10	313570		Tube Clip		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (18)   (Replaces: 343641)			Immediately	$ 7.85
11	313195		Rear Cover Control Panel		Appelez-nous	-
12	313101		Lens, Amber (3)		Appelez-nous	-
13	313608		Shield, Glass (2)		Appelez-nous	-
13	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
14	3149984		Knob, Control (selector)		Appelez-nous	-
