01 - Center Partition Assembly

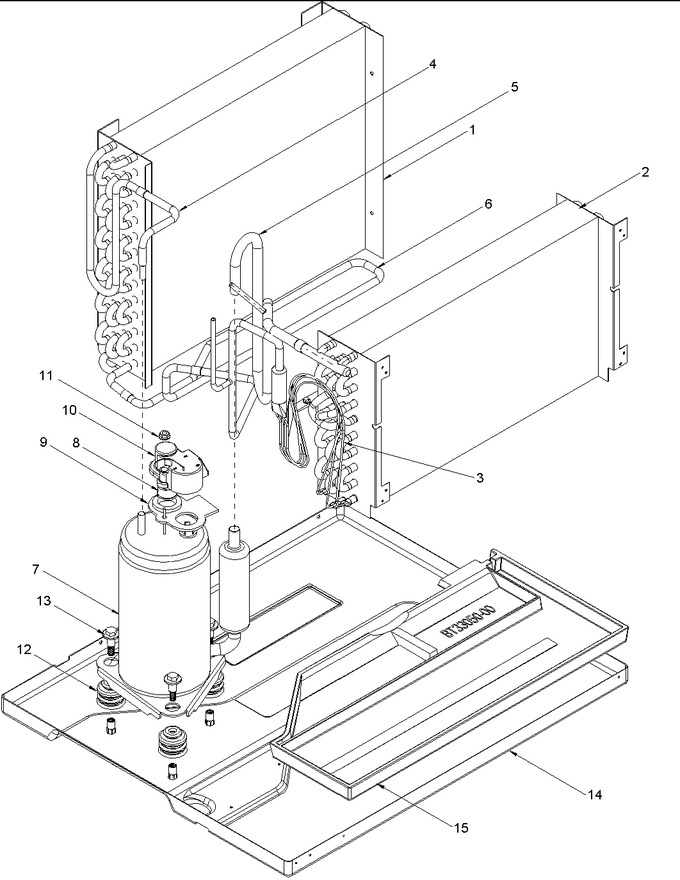

02 - Compressor, Tubing And Basepan
03 - Front Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y3396506 | Assy, Condenser Coil |
|
- | |||||
| 2 | Y3396006 | Assy, Evap Coil |
|
- | |||||
| 3 | Y3393807 | Assy, Capillary Tube |
|
- | |||||
| 4 | Y3393623 | Tubing, Condenser |
|
- | |||||
| 5 | Y3393709 | Assy, Suction Line |
|
- | |||||
| 6 | Y3393800 | Assy, Liquid Line |
|
- | |||||
| 7 | BT9266112 | Compressor |
|
- | |||||
| 8 | BT1243714 | Switch, Overload (mra5723-114 |
|
- | |||||
| 9 | BT1392604 | Gasket, Compressor (tec) |
|
- | |||||
| 10 | BT3055505 | Plastic Cover |
|
- | |||||
| 11 | BT1393000 | Nut, (tecumseh) |
|
- | |||||
| 12 | BT1339500 | Grommet - Comp |
|
- | |||||
| 13 | BT1393704 | Bolt, Comp. Shoulder 5/16-18 |
|
- | |||||
| 14 | 3350201S | Base Pan Assy |
|
- | |||||
| 15 | BT3305000 | Pan, Drain (styrofoam) |
|
- |
