01 - Compressor Assy
02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:

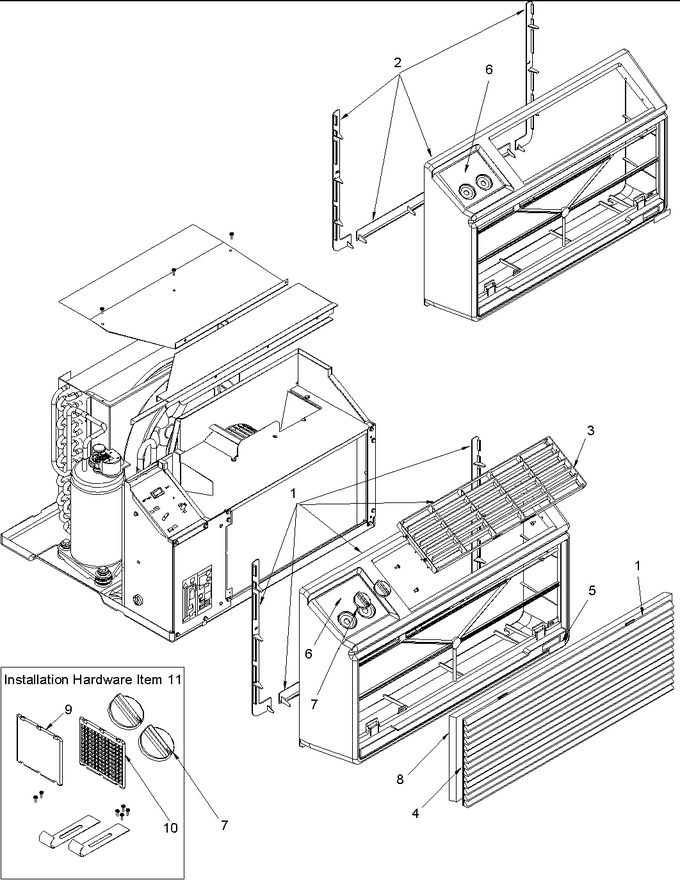

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BT3375004 | Frame, Front |
|
- | |||||
| 3 | BT3375200 | Grill Return Air |
|
- | |||||
| 5 | BT3075913 | Logo, Plastic (goodman) |
|
- | |||||
| 6 | BT1493397 | Label, Control |
|
- | |||||
| 7 | BT3075631 | Knob, Rac (cool Gray) |
|
$ 30.93 | |||||
| 8 | BT1369603 | Air Filter |
|
- | |||||
| 9 | BT3076001 | Plug, Fresh Air |
|
- | |||||
| 10 | BT3076003 | Plug |
|
- | |||||
| 11 | Y3352000 | Kit, Ttw Instal |
|
- | |||||
| NOTE: | Note: If Complete Front Is Required, Order Front Assy, Control Label, Logo And Filter. When Ordering Front Frame Only Order Control Label And Logo Also. Hardw |
|
- | ||||||
| NI | BT1392615 | Gasket-.50 X 1.00 |
|
- | |||||
| NI | BT1392607 | Foam Gasket-.50 X .50, 4-5 Ft |
|
- |
