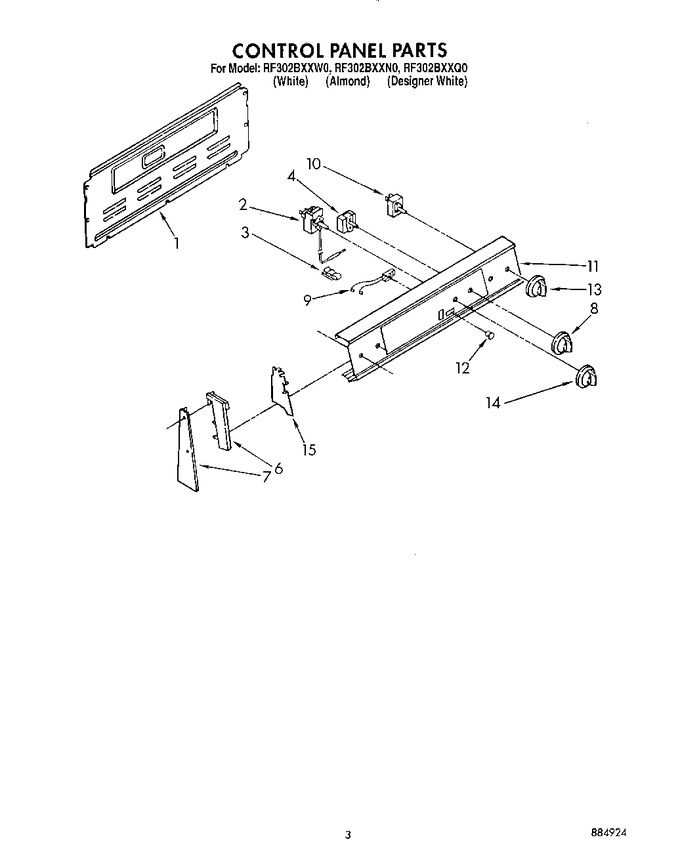

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
1	313195		Cover, Rear		Appelez-nous	-
2	WP313808		Screw (2)   (Replaces: 311932)				$ 7.60
2	661150		Thermostat, Oven		Appelez-nous	-
2	310864		(alt.)		Appelez-nous	-
2	311498		(alt.)		Appelez-nous	-
3	313570		Clamp, Tube		Appelez-nous	-
4	3150430		Switch, Selector				$ 66.71
4	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
6	3181677		End Cap, R.h. (white/almondmdls)		Appelez-nous	-
6	313231		(end Cap, L.h.) (designer Mdl)		Appelez-nous	-
6	254225		(end Cap, L.h.) (screw 8bt X 1/4 (4))		Appelez-nous	-
6	3181678		(end Cap, L.h.) (white/almond Mdls)		Appelez-nous	-
6	313230		End Cap, R.h. (designer Mdl)		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
7	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.82
7	313190		End Trim L.h.		Appelez-nous	-
7	313191		End Trim R.h.		Appelez-nous	-
8	3149984		Knob, Selector (white/almond Mdls)		Appelez-nous	-
8	3182483		Knob, Selector (designer Mdl)		Appelez-nous	-
9	314031		Light, Indicator (includes No. 12) (oven Unit On)				$ 62.88
9	3150662		Light, Indicator (includes No. 12) (surface Unit On)		Appelez-nous	-
10	5500-287		Switch, Infinite (6`` Element (3))   (Replaces: 3148951)			Immediately	$ 52.39
10	5500-287		Switch, Infinite (8`` Element (1))   (Replaces: 3148953)			Immediately	$ 52.39
10	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
11	3150490		Panel, Control (almond)		Appelez-nous	-
11	WP681414		Panel, Control (screw, 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.85
11	312604		Panel, Control (screw, 8-18 X 5/8 (4))		Appelez-nous	-
11	3150491		Panel, Control (designer Mdl)		Appelez-nous	-
11	3150489		Panel, Control (white)		Appelez-nous	-
12	313101		Lens, Amber (2)		Appelez-nous	-
13	WP3149983		Knob, (4) Infinite Switch (designer Mdl)   (Replaces: 3150345)				$ 23.23
13	WP3149983		Knob, (4) Infinite Switch (white/almond Mdls)   (Replaces: 3149983)				$ 23.23
14	3149987		Knob, Temperature (white/almond Mdls)				$ 25.12
14	3182482		Knob, Temperature (designer Mdl)		Appelez-nous	-
15	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
15	313608		Shield (2)		Appelez-nous	-
	LIT3150400		Installation Templet		Appelez-nous	-
	LIT3147389		Instructions, Installation		Appelez-nous	-
	LIT884924		List, Parts		Appelez-nous	-
	LIT3150655		Wiring Diagram		Appelez-nous	-
	LIT3150256		Guide, Use & Care		Appelez-nous	-
