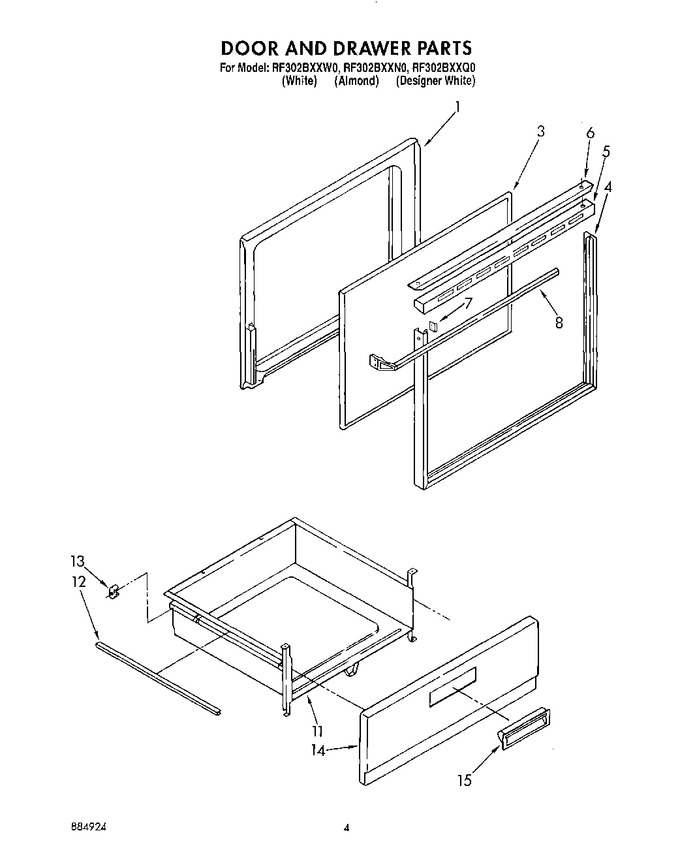

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw (3)		Appelez-nous	-
1	3149333		Screw (2)				$ 5.33
1	3172221		Liner, Door		Appelez-nous	-
3	3148186		Outer Glass Panel (black Glass)		Appelez-nous	-
3	3149051		Outer Glass Panel (designer White)		Appelez-nous	-
4	WP308685		Screw, Designer Model   (Replaces: 3182346)			Immediately	$ 7.87
4	WP355515		Screw (4)   (Replaces: 355515)				$ 8.48
4	3148235		Frame, Panel		Appelez-nous	-
5	3149355		Top, Door (designer Mdl)		Appelez-nous	-
5	3148223		Top, Door (white/almond Mdls)		Appelez-nous	-
6	WP308685		Screw (2)   (Replaces: 3182346)			Immediately	$ 7.87
6	3181363		Cap, Designer Model Only		Appelez-nous	-
7	3148282		Clip, Handle (2)				$ 8.69
8	3149354		Handle, Door (platinum Color)		Appelez-nous	-
8	3148228		Handle, Door (black Color)		Appelez-nous	-
11	327887		Drawer, Utility		Appelez-nous	-
12	309329		Protector, Drawer Slide (2)		Appelez-nous	-
13	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 312566)				$ 11.26
13	307980		Glide, Rear (2)		Appelez-nous	-
14	3150677		Panel, Drawer (almond)		Appelez-nous	-
14	3150676		Panel, Drawer (white)		Appelez-nous	-
14	WP488787		Panel, Drawer (screw, 8-18 X 1/2 (2))   (Replaces: 312566)				$ 11.26
15	3150613		Handle, Snap-in (almond)		Appelez-nous	-
15	3150612		Handle, Snap-in (white)		Appelez-nous	-
