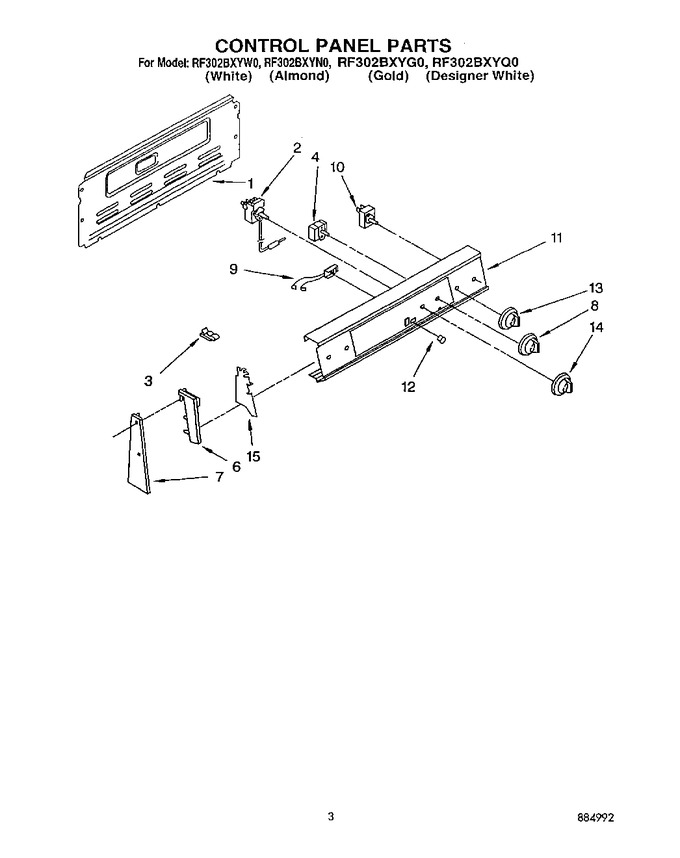

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 1 | 313195 | Cover, Rear |
|
- | |||||
| 2 | WP313808 | Screw (2) (Replaces: 311932) |
|
$ 8.30 | |||||
| 2 | 661150 | Thermostat, Oven |
|
- | |||||
| 2 | 310864 | (alt.) |
|
- | |||||
| 2 | 311498 | (alt.) |
|
- | |||||
| 3 | 313570 | Clamp, Tube |
|
- | |||||
| 4 | 3150430 | Switch, Selector |
|
$ 66.71 | |||||
| 4 | WP486579 | Screw, 8-32 X 1/4 (2) (Replaces: 311865) |
|
$ 7.89 | |||||
| 6 | 3150441 | End Cap, R.h. (white/almond/gold) |
|
- | |||||
| 6 | 313231 | End Cap, R.h. (designer Mdl) |
|
- | |||||
| 6 | 254225 | End Cap, R.h. (screw 8bt X 1/4 (4)) |
|
- | |||||
| 6 | 3150442 | End Cap, R.h. (white/almond/gold) |
|
- | |||||
| 6 | 313230 | End Cap, R.h. (designer Mdl End Cap, L.h.) |
|
- | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 7 | WP3390631 | Screw, 10a X 3/8 (2) (Replaces: 309112) |
|
$ 8.25 | |||||
| 7 | 313190 | End Trim L.h. |
|
- | |||||
| 7 | 313191 | End Trim R.h. |
|
- | |||||
| 8 | 3183109 | Knob, Selector (white/almond/gold) |
|
- | |||||
| 8 | 3183110 | Knob, Selector (designer Mdl) |
|
- | |||||
| 9 | 3150662 | Light, Indicator (includes No. 12) (surface Unit On) |
|
- | |||||
| 9 | 314031 | Light, Indicator (includes No. 12) (oven Unit On) |
|
$ 62.88 | |||||
| 10 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 7.89 | |||||
| 10 | 5500-287 | Switch, Infinite (8`` Element (1)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 10 | 5500-287 | Switch, Infinite (6`` Element (3)) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 11 | 3183829 | Panel, Control (white/almond/gold) |
|
- | |||||
| 11 | WP681414 | Panel, Control (screw, 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 8.47 | ||||
| 11 | 312604 | Panel, Control (screw, 8-18 X 5/8 (4)) |
|
- | |||||
| 11 | 3183830 | Panel, Control (designer Mdl) |
|
- | |||||
| 12 | 313101 | Lens, Amber (2) |
|
- | |||||
| 13 | 3183117 | Knob, (4) Infinite Switch (designer Mdl) |
|
$ 24.34 | |||||
| 13 | 3183118 | Knob, (4) Infinite Switch (white/almond/gold) |
|
$ 23.04 | |||||
| 14 | 3183107 | Knob, Temperature (designer Mdl) |
|
- | |||||
| 14 | 3183106 | Knob, Temperature (white/almond/gold) |
|
- | |||||
| 15 | WP965173 | Screw, No.8x3/8 (2) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 15 | 313608 | Shield (2) |
|
- |
