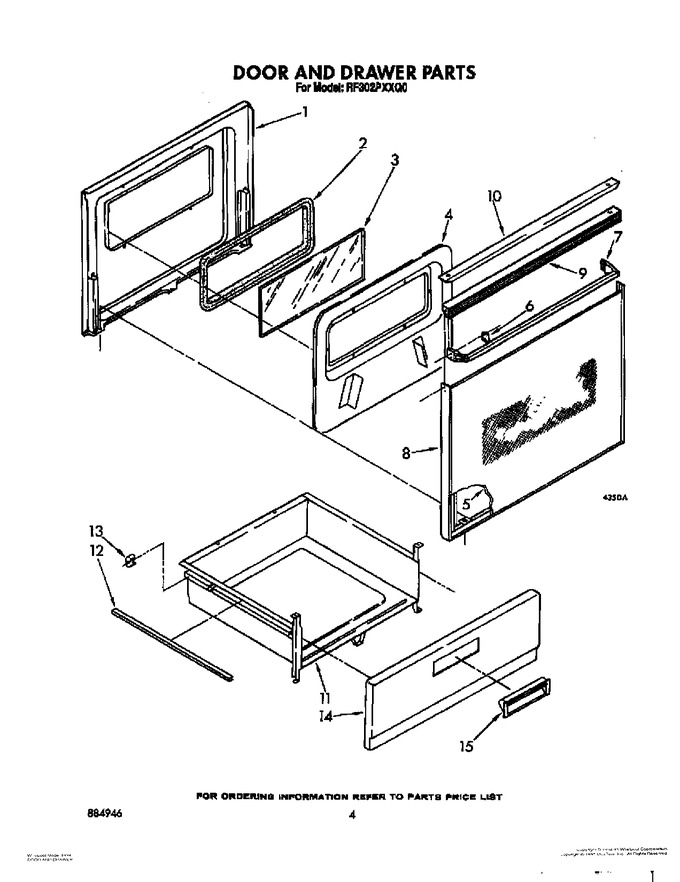

04 - Door And Drawer


05 - Oven


06 - Wiring Harness


07 - Oven (continued), Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172220		Liner, Door		Appelez-nous	-
1	3148443		Screw, 8-28 X 5/16		Appelez-nous	-
2	3148183		Seal, Glass				$ 7.41
3	3148179		Glass, Inner		Appelez-nous	-
4	3148287		Retainer,		Appelez-nous	-
4	3148443		Screw, 8-18 X 5/16		Appelez-nous	-
5	3149049		Outer Glass, White		Appelez-nous	-
6	3148282		Clip (2)				$ 8.69
7	3149354		Door Handle, Platinum		Appelez-nous	-
8	WP355515		Screw (4)   (Replaces: 355515)				$ 8.48
8	3148235		Frame, Door		Appelez-nous	-
8	WP308685		Screw (3)   (Replaces: 3182346)			Immediately	$ 7.87
9	3149355		Top, Door		Appelez-nous	-
10	3181363		Cap, Top		Appelez-nous	-
10	WP308685		Screw (2)   (Replaces: 3182346)			Immediately	$ 7.87
11	327887		Drawer, Utility		Appelez-nous	-
12	309329		Protector, Drawer Slide (2)		Appelez-nous	-
13	WP488787		Screw, 8-18 X 1/2 (2)   (Replaces: 312566)				$ 11.26
13	307980		Glide, Rear (2)		Appelez-nous	-
14	3150676		Drawer Panel, White		Appelez-nous	-
14	WP488787		Screw, 8-18 X 1/2 (5)   (Replaces: 312566)				$ 11.26
15	3150612		Snap-in Handle, White		Appelez-nous	-
