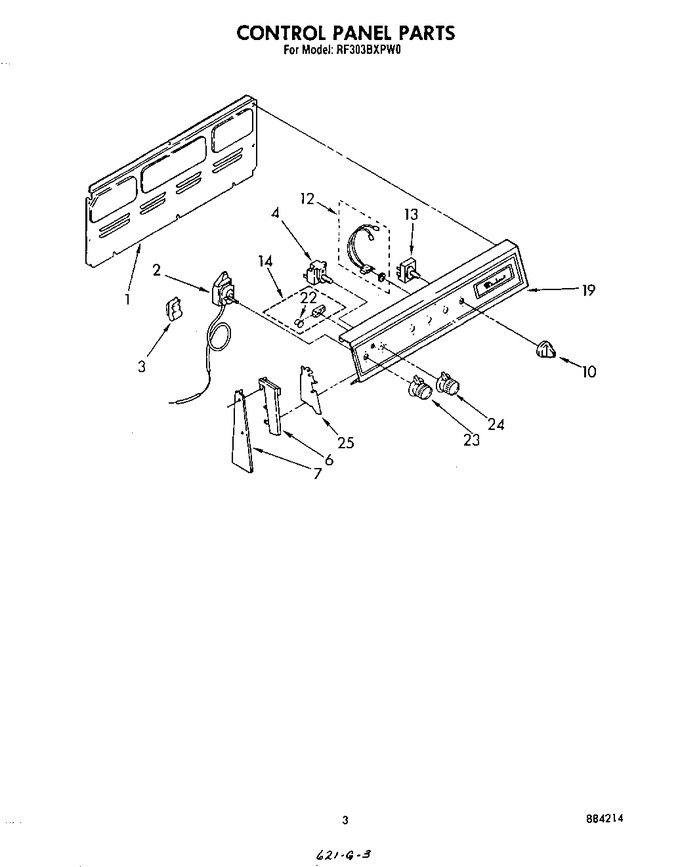

03 - Control Panel


04 - Oven , Literature And Optional


05 - Section


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313195		Cover, Rear		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
2	661150		Thermostat, Oven		Appelez-nous	-
2	310864		Thermostat, Oven (alt.)		Appelez-nous	-
2	311498		Thermostat, Oven (alt.)		Appelez-nous	-
3	313570		Clamp, Tube		Appelez-nous	-
4	313061		Switch, Selector		Appelez-nous	-
4	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
6	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
6	313230		End Cap R.h.		Appelez-nous	-
6	313231		End Cap L.h.		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
7	313191		End Trim R.h.		Appelez-nous	-
7	313190		End Trim L.h.		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
10	330177		Knob, Control (4)		Appelez-nous	-
12	313102		Light, Indicator (2) (includes Illus. 22)				$ 66.48
13	WP3149400		Switch, Infinite (1) (use W/8`` Surface Unit)   (Replaces: 311858)			Immediately	$ 90.51
13	WP3149404		Switch, Infinite (3) (use W/6`` Surface Unit)   (Replaces: 311856)			Immediately	$ 61.45
13	WP486579		Screw, 8-32 X 1/4 (8)   (Replaces: 311865)				$ 7.89
14	314031		Light, Indicator				$ 62.88
19	313374		Panel, Control (platinum)		Appelez-nous	-
19	313373		Panel, Control (toast)		Appelez-nous	-
19	313372		Control Panel (harvest Gold)		Appelez-nous	-
19	312604		Control Panel (screw, 8-18 X 5/8 (4))		Appelez-nous	-
19	313370		Panel, Control (white)		Appelez-nous	-
19	WP681414		Control Panel (screw, 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
19	313371		Panel, Control (almond)		Appelez-nous	-
22	313101		Lens, Amber (3)		Appelez-nous	-
23	330176		Knob, Thermostat		Appelez-nous	-
23	310410		Screw		Appelez-nous	-
24	310410		Screw		Appelez-nous	-
24	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
24	330180		Knob, Selector		Appelez-nous	-
25	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
25	313608		Shield (2)		Appelez-nous	-
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
