SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts

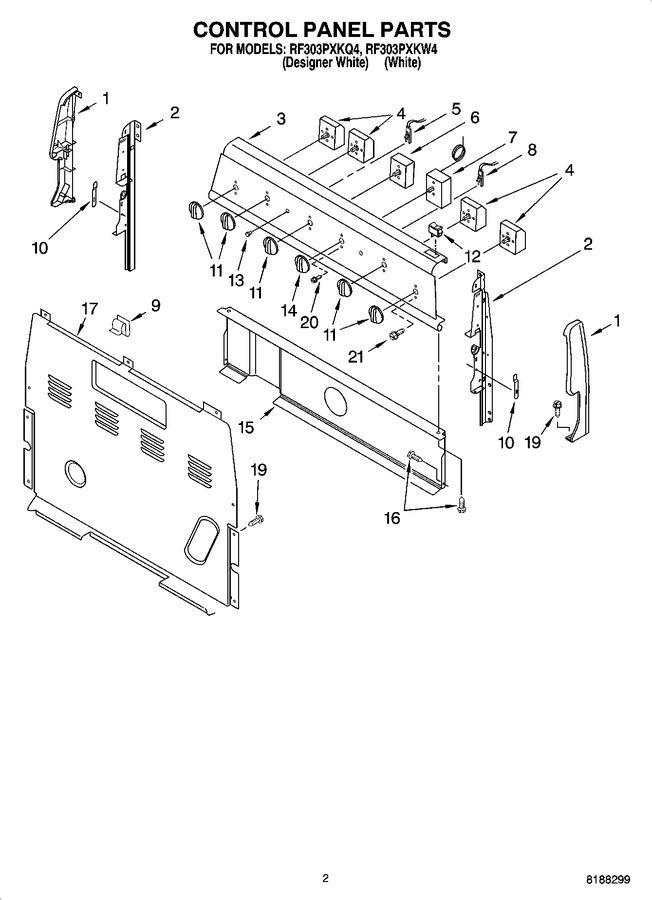

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap (left Hand White)		Appelez-nous	-
1	3186188		Endcap, Left Hand (black)		Appelez-nous	-
1	3186191		Endcap (right Hand White)		Appelez-nous	-
1	3186189		Endcap, Right Hand (black)		Appelez-nous	-
2	8523409		Support, Endcap (right Hand)		Appelez-nous	-
2	8523408		Support, Endcap (left Hand)		Appelez-nous	-
3	3186163		Panel, Backguard (white)		Appelez-nous	-
3	9759807		Panel, Backguard (black)		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 52.39
5	8273303		Indicator, Surface		Appelez-nous	-
6	WP3188987		Switch, Selector   (Replaces: 3188987)				$ 162.14
7	WP9762852		Thermostat   (Replaces: 8524329)				$ 406.95
8	314031		Indicator, Oven				$ 62.88
9	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
10	3196200		Clip, Spring (2)				$ 10.45
11	WP8522566		Knob, Infinite (5) (black)   (Replaces: 8522566)				$ 22.29
11	WP8522565		Knob, Infinite (5) (white)   (Replaces: 8522565)			Immediately	$ 20.90
12	3149360		Switch, Rocker				$ 89.01
13	WP3196068		Lens, Ind. (2)   (Replaces: 3196068)			Immediately	$ 6.26
14	8522620		Knob, Thermostat (black)				$ 6.78
14	8522619		Knob, Thermostat (white)		Appelez-nous	-
15	8053912		Shield, Heat				$ 34.55
16	W10276642		Screw   (Replaces: 4449746)				$ 6.41
17	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
19	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
20	WP3196170		Screw   (Replaces: 3196170)				$ 7.55
21	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
