SELECT A DIAGRAM

01 - Cooktop, Literature

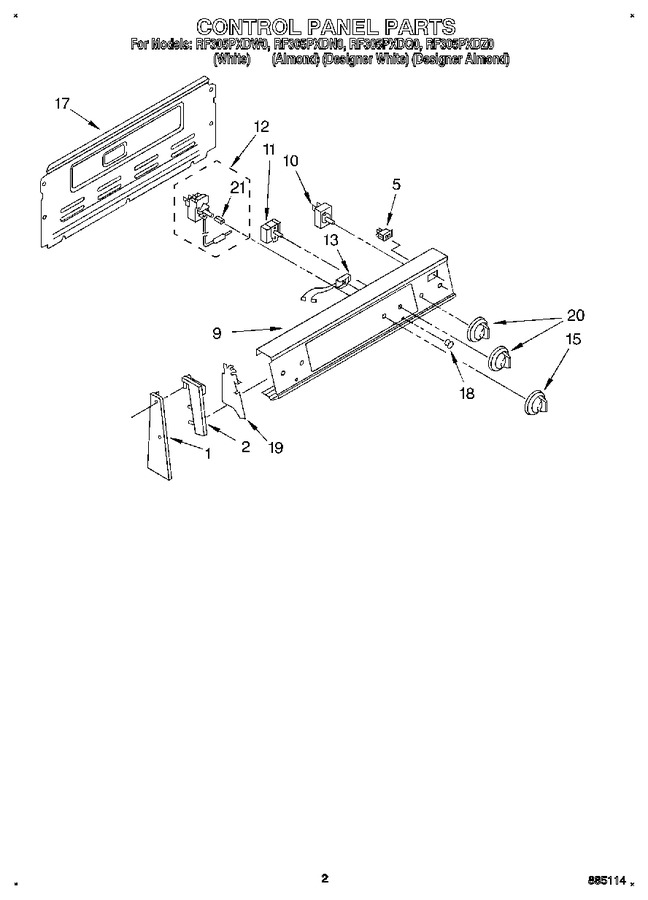

02 - Control Panel


03 - Unit


04 - Door And Drawer


05 - Oven


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3169469		End Trim (lh, Designer Almond)		Appelez-nous	-
1	WP3390631		(end Trim L.h.) (screw, 10a X 3/8 (2))   (Replaces: 309112)				$ 7.82
1	WP681414		(end Trim L.h.) (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.85
1	3187671		End Trim R.h. (black)		Appelez-nous	-
1	3188992		End Trim R.h. (designer White)		Appelez-nous	-
1	3169468		End Trim R.h. (designer Almond)		Appelez-nous	-
1	3187672		End Trim (lh, Black)		Appelez-nous	-
1	3188993		End Trim (lh, Designer White)		Appelez-nous	-
2	3187796		End Cap L.h. (designer Almond)		Appelez-nous	-
2	3187794		End Cap L.h. (designer White)		Appelez-nous	-
2	3187792		End Cap L.h. (black)		Appelez-nous	-
2	3187791		End Cap, R.h. (black)		Appelez-nous	-
2	3187793		End Cap R.h. (designer White)		Appelez-nous	-
2	3187795		End Cap R.h. (designer Almond)		Appelez-nous	-
2	254225		(end Cap, L.h.) (screw 8bt X 1/4 (4))		Appelez-nous	-
5	3182717		Switch, Rocker (black)		Appelez-nous	-
5	3182718		Switch, Rocker (designer White)		Appelez-nous	-
5	3182719		Switch, Rocker (designer Almond)		Appelez-nous	-
9	312604		Panel, Control (screw, 8-18 X 5/8 (4))		Appelez-nous	-
9	3188954		Panel, Control (designer White)		Appelez-nous	-
9	3188953		Panel, Control (black)		Appelez-nous	-
9	3188955		Panel, Control (designer Almond)		Appelez-nous	-
10	5500-287		Switch, Infinite (6`` Unit (2))   (Replaces: 3148951)			Immediately	$ 52.39
10	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
10	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
11	WP3188987		Switch, Selector (3 Position)   (Replaces: 3188987)				$ 154.42
11	308119		Screw (2)		Appelez-nous	-
12	3169302		Thermostat, 0ven				$ 193.75
12	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
13	314031		Indicator Light (oven Unit On)				$ 62.88
13	3169457		Indicator Light (surface Unit On)		Appelez-nous	-
15	3188724		Knob, Thermostat (black)		Appelez-nous	-
15	3188725		Knob, Thermostat (designer White)		Appelez-nous	-
15	3188726		Knob, Thermostat (designer Almond)		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
17	3187332		Rear Cover Control Panel		Appelez-nous	-
18	313101		Lens, Amber (2)		Appelez-nous	-
19	313608		Shield, Glass (2)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
20	WP3196231		Knob, (5) Control Selector & Inf. (black)   (Replaces: 3188721)			Immediately	$ 20.95
20	3188722		Knob, (5) Control Selector & Inf. (designer White)		Appelez-nous	-
20	3188723		Knob, (5) Control Selector & Inf. (designer Almond)		Appelez-nous	-
21	3169525		Sleeve, Adaptor		Appelez-nous	-
