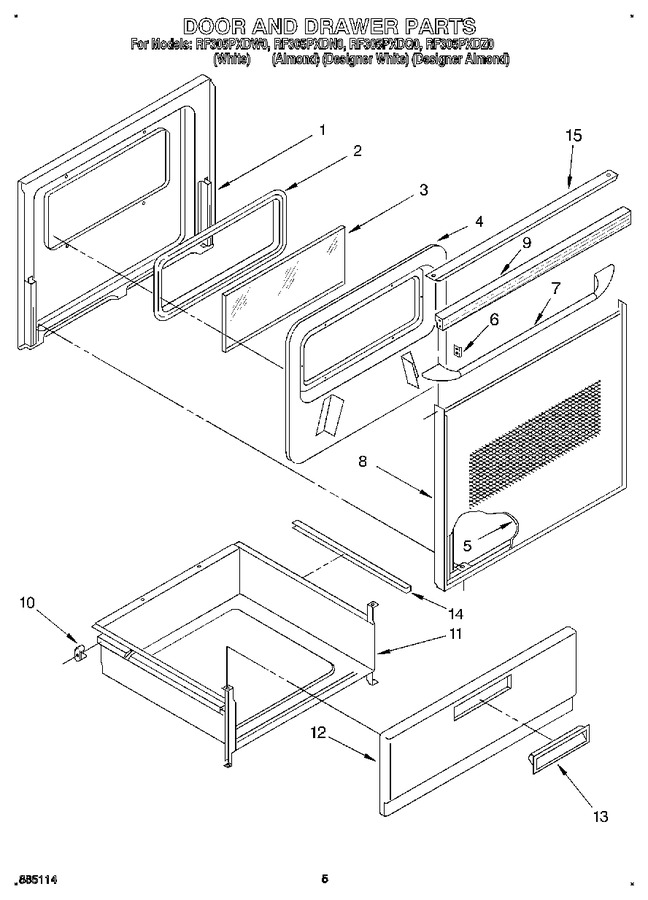

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop, Literature
02 - Control Panel
03 - Unit
04 - Door And Drawer
05 - Oven
06 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3172220 | Liner, Door |
|
- | |||||
| 2 | 3148183 | Seal, Glass |
|
$ 7.41 | |||||
| 3 | 3169202 | Glass, Inner |
|
- | |||||
| 4 | 3185647 | Screw (6) |
|
- | |||||
| 4 | 3148287 | Retainer, |
|
- | |||||
| 5 | 3189263 | Glass Panel, Outer (almond) |
|
- | |||||
| 5 | 3188739 | Glass Panel, Outer (black) |
|
- | |||||
| 5 | 3188738 | Glass Panel, Outer (white) |
|
- | |||||
| 6 | 3148282 | Clip (2) |
|
$ 8.69 | |||||
| 7 | WP999367 | Handle, Door (screw, (4)) (Replaces: 3169474) |
|
$ 7.86 | |||||
| 7 | 3188696 | Handle, Door (white) |
|
- | |||||
| 7 | 3188695 | Handle, Door (black) |
|
- | |||||
| 7 | 3188697 | Handle, Door (almond) |
|
- | |||||
| 8 | 3188403 | Frame, Door (screw (4)) |
|
- | |||||
| 8 | 3188998 | Frame, Door (white) |
|
- | |||||
| 8 | 3149333 | Frame, Door (screw (3)) |
|
$ 5.33 | |||||
| 8 | 3149253 | Frame, Door (screw (4)) |
|
- | |||||
| 8 | 3188997 | Frame, Door (black) |
|
- | |||||
| 8 | 3188404 | Frame, Door (screw (4)) |
|
- | |||||
| 8 | 3188999 | Frame, Door (almond) |
|
- | |||||
| 8 | 3185918 | Frame, Door (screw (3)) |
|
- | |||||
| 9 | 3188693 | Top, Door Frame (designer White) |
|
- | |||||
| 9 | 3188694 | Top, Door Frame (designer Almond) |
|
- | |||||
| 9 | 3188400 | Top, Door Frame (screw (2)) |
|
- | |||||
| 9 | 3188692 | Top, Door Frame (black) |
|
- | |||||
| 9 | 3149333 | Top, Door Frame (screw (2)) |
|
$ 5.33 | |||||
| 9 | 3188399 | Top, Door Frame (screw (2)) |
|
- | |||||
| 10 | 307980 | Glide, Rear |
|
- | |||||
| 10 | WP308685 | Screw, (2) 8-18 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 11 | 327887 | Drawer, Utility |
|
- | |||||
| 12 | WP488627 | Panel, Drawer (screw, (3) 8-18 X 1/2) (Replaces: 313349) |
|
$ 7.57 | |||||
| 12 | 3169431 | Panel, Drawer (almond) |
|
- | |||||
| 12 | 3169430 | Panel, Drawer (white) |
|
- | |||||
| 13 | WP488627 | Handle, Drawer (screw, (2) 8-18 X 1/2) (Replaces: 313349) |
|
$ 7.57 | |||||
| 13 | 3150613 | Handle, Drawer (almond) |
|
- | |||||
| 13 | 3150612 | Handle, Drawer (white) |
|
- | |||||
| 14 | 309329 | Protector, Drawer (2) |
|
- | |||||
| 15 | 3189002 | Cap, Top (designer Almond) |
|
- | |||||
| 15 | 3189001 | Cap, Top (designer White) |
|
- |
