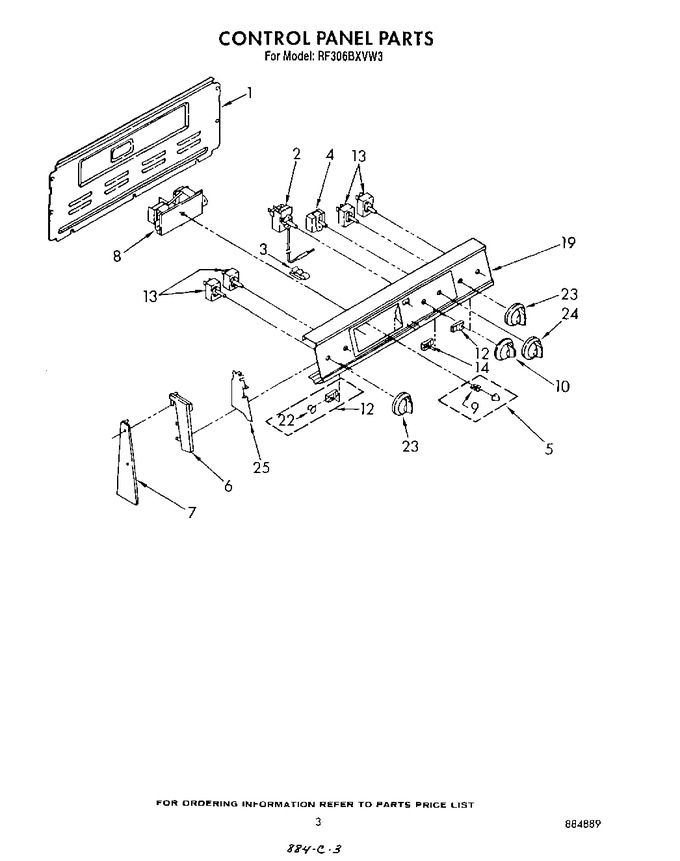

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313195		Cover, Rear		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
2	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
2	661150		Thermostat, Oven		Appelez-nous	-
3	313570		Clamp, Tube		Appelez-nous	-
4	3150430		Switch, Selector				$ 66.71
4	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
5	330206		Knob, Timer		Appelez-nous	-
6	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
6	313231		End Cap L.h.		Appelez-nous	-
6	313230		End Cap R.h.		Appelez-nous	-
7	313191		End Trim R.h.		Appelez-nous	-
7	254225		Screw, No.8 X 1/4 (4)		Appelez-nous	-
7	313190		End Trim L.h.		Appelez-nous	-
8	3149835		Timer, Clock		Appelez-nous	-
9	313311		Spring		Appelez-nous	-
10	3149987		Knob, Thermostat Control				$ 25.12
12	313102		Light, Indicator (2) (includes No. 22)				$ 66.48
13	5500-287		Switch, Infinite (6`` Element (2))   (Replaces: 3148951)			Immediately	$ 52.39
13	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
13	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
14	314031		Light, Indicator				$ 62.88
19	WP681414		Control Panel (screw, 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
19	3150386		Control Panel (almond)		Appelez-nous	-
19	3150385		Control Panel (white)		Appelez-nous	-
19	312604		Control Panel (screw, 8-18 X 5/8 (4))		Appelez-nous	-
22	313101		Lens, Amber (3)		Appelez-nous	-
23	WP3149983		Knob, Infinite (4)   (Replaces: 3149983)				$ 24.39
24	3149984		Knob, Selector		Appelez-nous	-
25	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
25	313608		Shield (2)		Appelez-nous	-
