SELECT A DIAGRAM

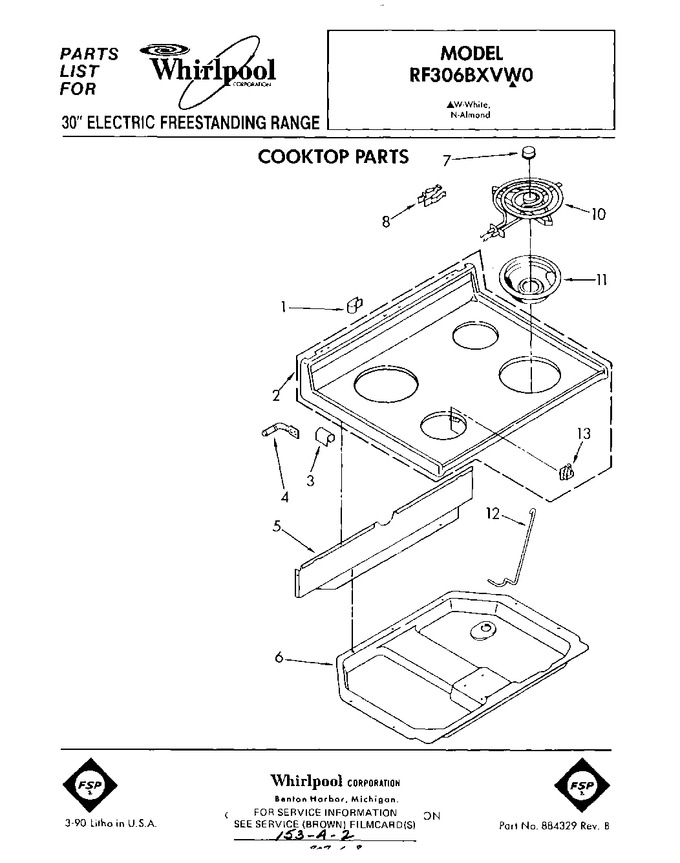

01 - Cooktop


02 - Door


03 - Control Panel


04 - Unit, Lit/optional


05 - Oven


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
1	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.76
2	3170982		Cooktop (almond)		Appelez-nous	-
2	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
2	3170981		Cooktop (white)		Appelez-nous	-
3	307965		Bracket, Cooktop		Appelez-nous	-
3	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
4	307966		Hinge Pin, Cooktop		Appelez-nous	-
4	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
5	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
5	307973		Shield, Wiring		Appelez-nous	-
6	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 8.25
6	3149194		Box, Burner		Appelez-nous	-
7	309926		Medallion (4)		Appelez-nous	-
8	WP313808		Screw, 6-32 X 9/32 (4)   (Replaces: 313808)				$ 8.30
8	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 19.92
10	WP660533		Alt.   (Replaces: 309216)			Immediately	$ 44.68
10	WP660532		Unit, Surface 6`` (2) (240v) (includes Illus. 7)   (Replaces: 660528)			Immediately	$ 50.11
10	WP660532		(alt.)   (Replaces: 309191)			Immediately	$ 50.11
10	WP660532		(alt.)   (Replaces: 309249)			Immediately	$ 50.11
10	WP660533		Unit, Surface 8`` (2) (240v) (includes Illus. 7)   (Replaces: 660530)			Immediately	$ 44.68
10	WP660533		(alt.)   (Replaces: 309185)			Immediately	$ 44.68
11	WPW10196406		Pan (6`` (2))   (Replaces: 3150246)			Immediately	$ 13.39
11	W10196405RW		Pan (8`` (2))   (Replaces: 3150247)			Immediately	$ 21.82
12	3148659		Rod, Cooktop		Appelez-nous	-
13	00487887		Screw (4)   (Replaces: 487887)				$ 244.80
13	814102		Nut (4)				$ 5.27
13	814103		Clip, Retainer (4)   (Replaces: 3148790)				$ 10.52

    View Diagram in Separate Window       Print Part List
