Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 313147 Harness, Wire (main) Appelez-nous -
2 3147365 Harness, Wire (oven) Appelez-nous -
3 3149881 Harness, Wire (surface Unit) Appelez-nous -
4 WPW10339879 Tie Cable   (Replaces: 309330) Special Order $ 8.30

5 16515 Clip, Harness   (Replaces: 313438) Special Order $ 20.53


    View Diagram in Separate Window     Print Icon   Print Part List

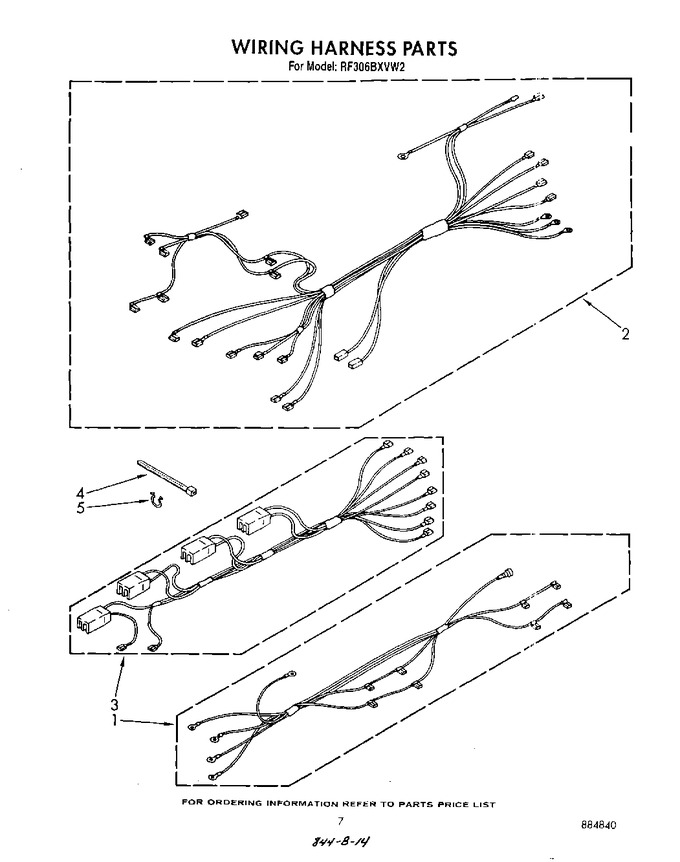

Diagram for RF306BXVW2
