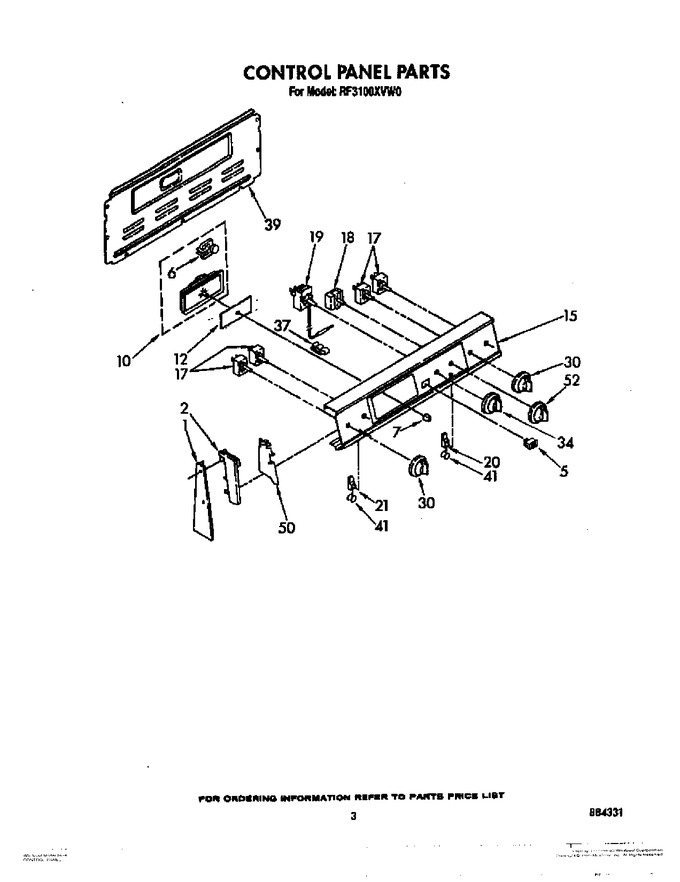

03 - Control Panel


04 - Oven, Optional


05 - Section


06 - Door


07 - Wiring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.82
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
5	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 89.48
6	309822		Motor, Timer		Appelez-nous	-
7	330206		Knob, Timer		Appelez-nous	-
7	313311		Spring, Knob		Appelez-nous	-
10	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 10.72
10	3148850		Timer, Clock		Appelez-nous	-
12	3148852		Glass, Timer		Appelez-nous	-
15	3148833		Panel, Control		Appelez-nous	-
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
17	5500-287		Switch, Infinite (6`` Unit (2))   (Replaces: 3148951)			Immediately	$ 52.39
17	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
18	3150430		Switch, Selector (3 Position)				$ 66.71
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
19	310864		Thermostat, Oven (alt.)		Appelez-nous	-
19	311498		Thermostat, Oven (alt.)		Appelez-nous	-
19	661150		Thermostat, Oven		Appelez-nous	-
20	314031		Light, Indicator (oven) (includes Illus. 41)				$ 62.88
21	313102		Light, Indicator (surface Unit) (2) (includes Illus. 41)				$ 66.48
30	330177		Knob, Control (4)		Appelez-nous	-
34	310410		Screw (2)		Appelez-nous	-
34	330176		Knob, Control		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
39	313195		Rear Cover Control Panel		Appelez-nous	-
41	313101		Lens, Amber (3)		Appelez-nous	-
50	313608		Shield, Glass (2)		Appelez-nous	-
50	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
52	330180		Knob, Control		Appelez-nous	-
52	WP688805		Spring   (Replaces: 688805)			Immediately	$ 7.81
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
