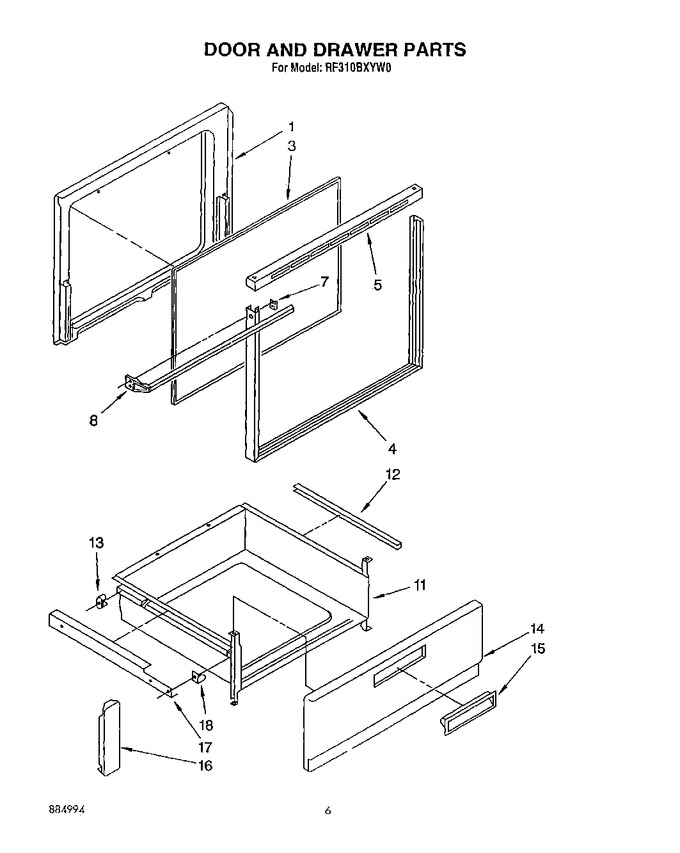

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw (3)		Appelez-nous	-
1	3149333		Screw (2)				$ 5.33
1	3172221		Liner, Door		Appelez-nous	-
3	3148186		Outer Glass Panel (black Glass)		Appelez-nous	-
4	3148235		Frame, Panel		Appelez-nous	-
4	WP355515		Screw (4)   (Replaces: 355515)				$ 8.48
5	3148223		Top, Door (white-almond)		Appelez-nous	-
7	3148282		Clip, Handle (2)				$ 8.69
8	3148228		Handle, Door (black Color)		Appelez-nous	-
11	327887		Drawer, Utility		Appelez-nous	-
12	309329		Protector, Drawer Slide (2)		Appelez-nous	-
13	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 312566)				$ 11.26
13	307980		Glide, Rear (2)		Appelez-nous	-
14	3150676		Panel, Drawer (white)		Appelez-nous	-
14	WP488787		Panel, Drawer (screw, 8-18 X 1/2 (2))   (Replaces: 312566)				$ 11.26
14	3150677		Panel, Drawer (almond)		Appelez-nous	-
15	3150613		Handle, Snap-in (almond)		Appelez-nous	-
15	3150612		Handle, Snap-in (white)		Appelez-nous	-
16	307981		Bracket, Rail (2)		Appelez-nous	-
17	3149256		Rail, Slide (l.h. (includes No. 18))		Appelez-nous	-
17	3149255		Rail, Slide (r.h.)		Appelez-nous	-
17	307748		Rail, Slide (screw (2))		Appelez-nous	-
18	3149257		Glide, Front (2)		Appelez-nous	-
18	307748		Screw (2)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	261886		Coffee		Appelez-nous	-
	261890		Harvest Gold		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285006		Paint, Spray 13 Oz. (black)				$ 59.89
	350942		Primer (white)   (Replaces: 206922)				$ 94.14
	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Almond (uncut)		Appelez-nous	-
	261891		Harvest Gold (uncut)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	LIT3150656		Wiring Diagram		Appelez-nous	-
	LIT3147395		Instructions, Installation		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	LIT3150285		Guide, Use & Care		Appelez-nous	-
	LIT884994		Repair Parts List		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		12 Ga. 150~c (wire, Red 12 Ga. 150~c)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
	242826		12 Ga. 150~c (wire, White 14 Ga. 150~c)		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		12 Ga. 150~c (wire, Yellow 14 Ga. 200~c)		Appelez-nous	-
	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	261888		New Avocado		Appelez-nous	-
