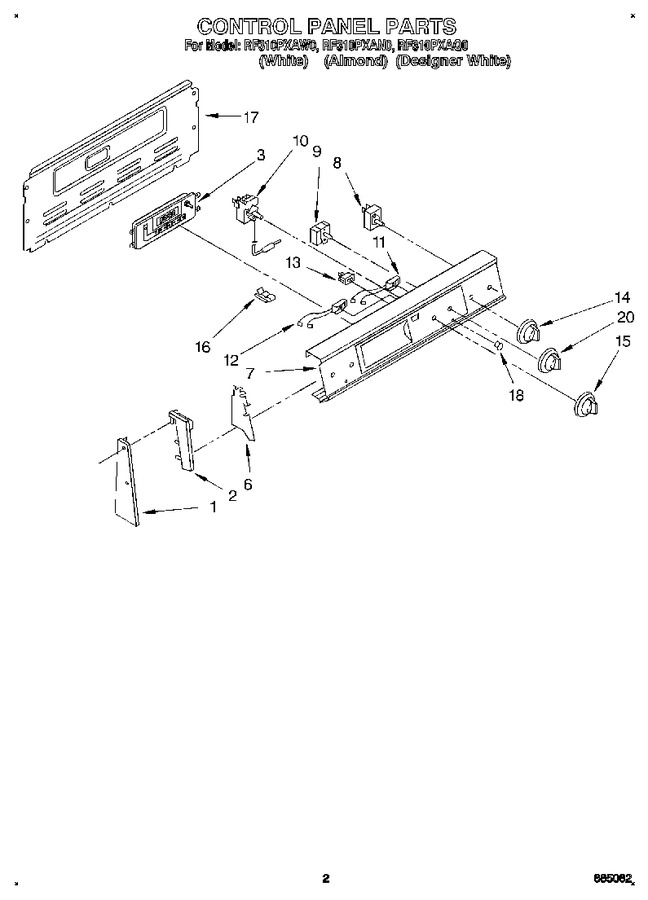

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Oven


04 - Door And Drawer


05 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
2	254225		End Cap (screw, 8bt X 1/4 (4))		Appelez-nous	-
2	313231		End Cap (lh-designer White (model))		Appelez-nous	-
2	313230		End Cap (rh-designer White (model))		Appelez-nous	-
2	3150442		End Cap (left)		Appelez-nous	-
2	3150441		End Cap (right)		Appelez-nous	-
3	3187285		Designer White Mdl		Appelez-nous	-
3	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
3	3187284		Timer, Clock		Appelez-nous	-
6	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
6	313608		Shield (2)		Appelez-nous	-
7	3183811		Panel, Control (white Mdl.)		Appelez-nous	-
7	3183812		Panel, Control (designer White Mdl)		Appelez-nous	-
7	3183813		Panel, Control (almond Mdl.)		Appelez-nous	-
7	WP681414		Panel, Control (screw, 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
8	5500-287		Switch, Infinite (6`` Element (2))   (Replaces: 3148951)			Immediately	$ 52.39
8	5500-287		Switch, Infinite (8`` Element (2))   (Replaces: 3148953)			Immediately	$ 52.39
8	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
9	308119		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
9	3150430		Switch, Selector				$ 66.71
10	661150		Thermostat, Oven		Appelez-nous	-
10	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
11	314031		Light, Indicator (oven)				$ 62.88
12	3150662		Light, Indicator (surface Unit)		Appelez-nous	-
13	WP4314961		Rocker Switch   (Replaces: 3148564)				$ 93.95
13	3149360		Designer White Mdl				$ 89.01
14	3183117		Designer White Mdl				$ 24.34
14	3183118		Knob, (4) (infinite Switch)				$ 23.04
15	3183107		Designer White Mdl		Appelez-nous	-
15	3183106		Knob (therm)		Appelez-nous	-
16	313570		Tube Clip		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
17	3187332		Rear Cover		Appelez-nous	-
18	313101		Lens, Amber (2)		Appelez-nous	-
20	3183110		Designer White Mdl		Appelez-nous	-
20	3183109		Knob, Selector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
