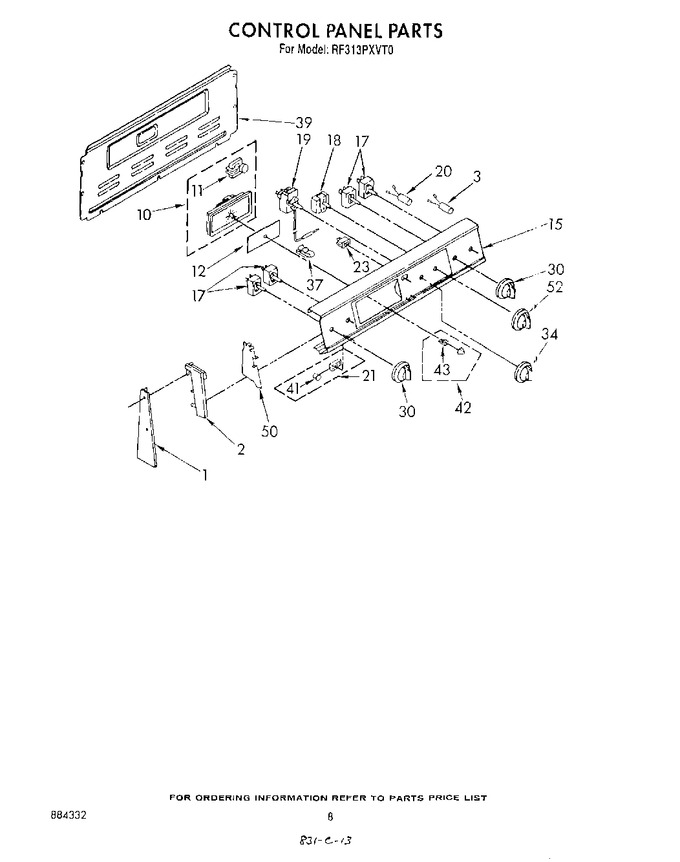

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
3	313102		Light Indicator				$ 66.48
10	3148850		Timer, Clock		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
12	3148852		Glass, Timer		Appelez-nous	-
15	3148833		Panel, Control		Appelez-nous	-
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
17	5500-287		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 3148951)			Immediately	$ 52.39
17	5500-287		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
18	313061		Switch, Selector (3 Position)		Appelez-nous	-
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
19	311498		Thermostat, Oven (alt.)		Appelez-nous	-
19	310864		Thermostat, Oven (alt.)		Appelez-nous	-
19	661150		Thermostat, Oven		Appelez-nous	-
20	314031		Light, Indicator				$ 62.88
21	313102		Light, Indiactor (includes Illus. No.41)				$ 66.48
23	WP4314961		Switch, Oven Light   (Replaces: 3148564)				$ 93.95
30	330177		Knob, Control (4)		Appelez-nous	-
34	330176		Knob, Control		Appelez-nous	-
34	310410		Screw (2)		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
39	313195		Rear Cover Control Panel		Appelez-nous	-
41	313101		Lens, Amber (3)		Appelez-nous	-
42	330206		Knob, Timer (1)		Appelez-nous	-
43	313311		Spring, Knob		Appelez-nous	-
50	313608		Shield, Glass (2)		Appelez-nous	-
50	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
52	330180		Knob, Control		Appelez-nous	-
53	WP688805		Spring   (Replaces: 688805)			Immediately	$ 8.20
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
