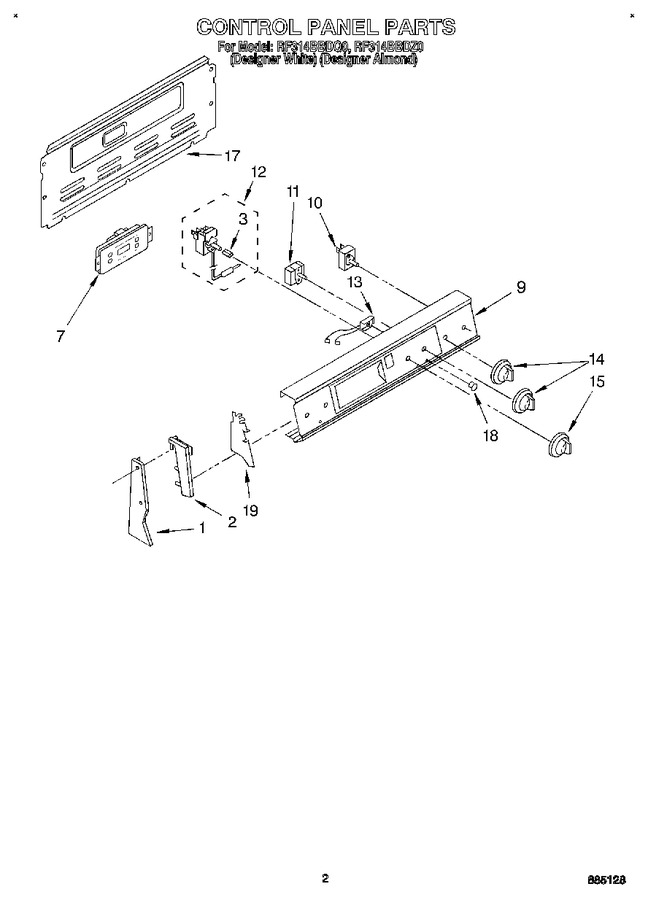

01 - Cooktop, Literature
02 - Control Panel
03 - Door And Drawer
04 - Unit
05 - Oven
06 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3188995 | End Trim (l.h. Almond) |
|
- | |||||
| 1 | WP965173 | End Trim (screw) (Replaces: 3150344) |
|
Immediately | $ 11.87 | ||||
| 1 | 3183094 | End Trim (r.h. White) |
|
- | |||||
| 1 | 3188994 | End Trim (r.h. Almond) |
|
- | |||||
| 1 | 3183095 | End Trim (l.h. White) |
|
- | |||||
| 2 | 3187794 | End Cap (l.h. White) |
|
- | |||||
| 2 | 3187795 | End Cap (r.h. Almond) |
|
- | |||||
| 2 | 3187793 | End Cap (r.h. White) |
|
- | |||||
| 2 | 254225 | End Cap (screw, 8bt X 1/4 (4)) |
|
- | |||||
| 2 | 3187796 | End Cap (l.h. Almond) |
|
- | |||||
| 3 | 3169525 | Sleeve, Adaptor |
|
- | |||||
| 7 | 3189300 | Timer, Clock (almond) |
|
- | |||||
| 7 | 3189299 | Timer, Clock (white) |
|
- | |||||
| 9 | 3169471 | Panel, Control (almond) |
|
- | |||||
| 9 | 3188677 | Panel, Control (almond Screw, (4)) |
|
- | |||||
| 9 | 3188676 | Panel, Control (white) |
|
- | |||||
| 9 | 3188996 | Panel, Control (white) |
|
- | |||||
| 10 | 5500-287 | Switch, Infinite (8`` Unit (2)) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 10 | 308119 | Switch, Infinite (screw, 8-32 X 1/4 (8)) |
|
- | |||||
| 10 | WP3148952 | Switch, Infinite (6`` Unit (2)) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 11 | WP3188987 | Switch, Selector (3 Position) (Replaces: 3188987) |
|
$ 162.14 | |||||
| 11 | 308119 | Screw (2) |
|
- | |||||
| 12 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 8.30 | |||||
| 12 | 3169302 | Thermostat, 0ven |
|
$ 193.75 | |||||
| 13 | 3169457 | Indicator Light (surf. Unit On (2)) |
|
- | |||||
| 13 | 3148719 | Indicator Light (hot Surface (1)) |
|
- | |||||
| 13 | 314031 | Indicator Light (oven On (1)) |
|
$ 62.88 | |||||
| 14 | 3188722 | Knob, Control (5) (inf. & Selector) (white) |
|
- | |||||
| 14 | 3188723 | Knob, Control (5) (inf. & Selector) (almond) |
|
- | |||||
| 15 | 3188726 | Knob, Temperature (almond) |
|
- | |||||
| 15 | 3188725 | Knob, Temperature (white) |
|
- | |||||
| 17 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 17 | 3187332 | Rear Cover Control Panel |
|
- | |||||
| 18 | 313101 | Lens, Amber (3) |
|
- | |||||
| 19 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 19 | 313608 | Shield, Glass (2) |
|
- |
