01 - Cooktop, Literature
02 - Control Panel
03 - Door And Drawer
04 - Unit
05 - Oven
06 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

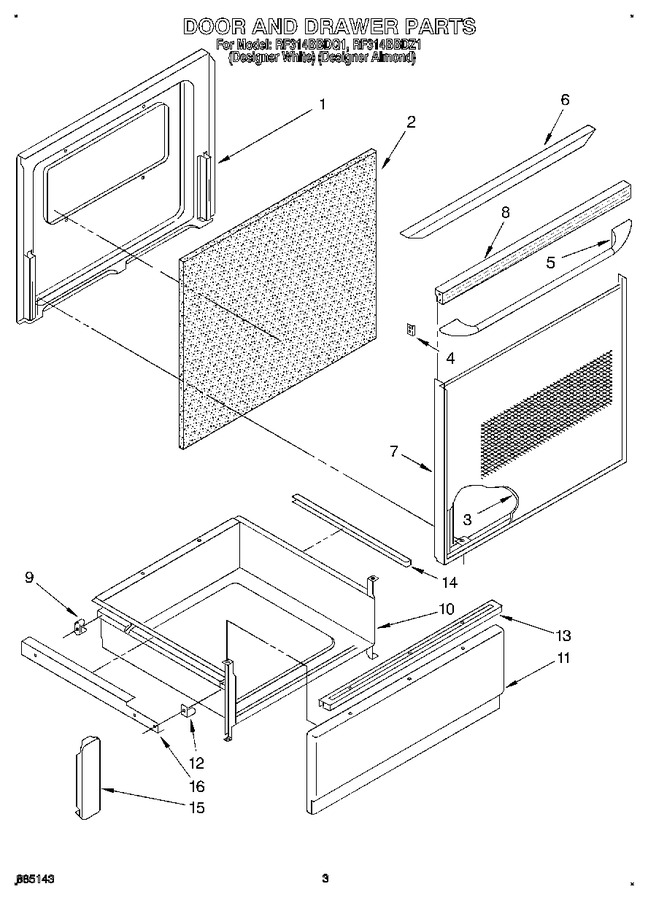

| 1 | 3172221 | Liner, Door |
|
- | |||||
| 2 | WPW10208653 | Insulation (Replaces: 3147953) |
|
Immediately | $ 55.47 | ||||
| 3 | 3149052 | Outer Glass (almond) |
|
- | |||||
| 3 | 3149051 | Outer Glass (white) |
|
- | |||||
| 4 | 3148282 | Clip (2) |
|
$ 8.69 | |||||
| 5 | 3188696 | Handle, Oven Door (white) |
|
- | |||||
| 5 | WP999367 | Handle, Oven Door (screw) (Replaces: 3169474) |
|
$ 8.56 | |||||
| 5 | 3188697 | Handle, Oven Door (almond) |
|
- | |||||
| 6 | 3188400 | Cap, Top (screw (2)) |
|
- | |||||
| 6 | 3188399 | Cap, Top (screw (2)) |
|
- | |||||
| 6 | 3189001 | Cap, Top (white Mdl.) |
|
- | |||||
| 6 | 3189002 | Cap, Top (almond Mdl.) |
|
- | |||||
| 7 | 3188404 | Frame, Door (screw (4) (sides)) |
|
- | |||||
| 7 | 3188998 | Frame, Door (white Mdl.) |
|
- | |||||
| 7 | 3185918 | Frame, Door (screw (3) Bottom) |
|
- | |||||
| 7 | 3188403 | Frame, Door (screw (4) (sides)) |
|
- | |||||
| 7 | 3188999 | Frame, Door (almond Mdl.) |
|
- | |||||
| 8 | 3188694 | Top, Door Vent (almond) |
|
- | |||||
| 8 | 3188693 | Top, Door Vent (white) |
|
- | |||||
| 9 | 307980 | Glide, Rear |
|
- | |||||
| 9 | WP308685 | Screw, 10a X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 10 | 327887 | Drawer, Utility |
|
- | |||||
| 11 | WP488627 | Panel Drawer (screw, 8-18 X 1/2) (Replaces: 313349) |
|
$ 8.11 | |||||
| 11 | 3169423 | Panel Drawer (almond) |
|
- | |||||
| 11 | 3169422 | Panel Drawer (white) |
|
- | |||||
| 12 | 3149257 | Glide, Front (2) |
|
- | |||||
| 12 | WP488627 | Screw, 10a X 1/2 (Replaces: 313349) |
|
$ 8.11 | |||||
| 13 | 3169473 | Handle, Drawer (white) |
|
- | |||||
| 13 | 3169472 | Handle, Drawer (almond) |
|
- | |||||
| 14 | 309329 | Protector, Drawer (2) |
|
- | |||||
| 15 | 3169420 | Bracket, Rail (2) |
|
- | |||||
| 16 | 307748 | Rail, Slide (screw) |
|
- | |||||
| 16 | 3149255 | Rail, Slide (r.h.) |
|
- | |||||
| 16 | 3149256 | Rail, Slide (l.h. (includes No. 12)) |
|
- |
