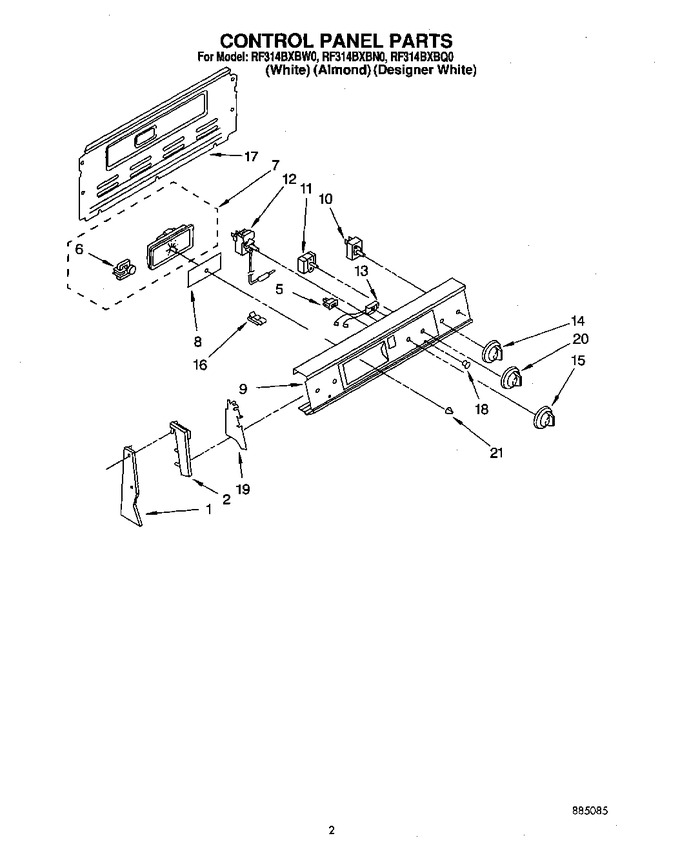

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183090		End Trim R.h.		Appelez-nous	-
1	3183091		End Trim L.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
2	254225		End Cap, R.h. (screw 8bt X 1/4 (4))		Appelez-nous	-
2	3150441		End Cap R.h. (white/almond Mdl.)		Appelez-nous	-
2	313230		End Cap R.h. (designer White Mdl End Cap L.h.)		Appelez-nous	-
2	3150442		End Cap R.h. (white/almond Mdl.)		Appelez-nous	-
2	313231		End Cap R.h. (designer White Mdl)		Appelez-nous	-
5	WP4314961		Switch, Rocker (white-almond Mdl.)   (Replaces: 3148564)				$ 93.95
5	3149360		Switch, Rocker (designer White Mdl)				$ 89.01
6	308443		Motor, Timer		Appelez-nous	-
7	3169299		Timer, Control (designer White Mdl)		Appelez-nous	-
7	3169298		Timer, Control (white/almond Mdl.)		Appelez-nous	-
8	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 11.87
8	3148852		Glass, Timer		Appelez-nous	-
9	312604		Panel, Control (screw, 8-18 X 5/8 (4))		Appelez-nous	-
9	3183816		Panel, Control (white/almond Mdl.)		Appelez-nous	-
9	3183820		Panel, Control (designer White Mdl)		Appelez-nous	-
10	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
10	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
10	WP3148952		Switch, Infinite (6`` Unit (2))   (Replaces: 3148952)			Immediately	$ 69.51
11	3150430		Switch, Selector (3 Position)				$ 66.71
11	308119		Screw (2)		Appelez-nous	-
12	3169302		Thermostat, 0ven				$ 193.75
12	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
13	314031		Indicator Light (1)				$ 62.88
13	3150662		Indicator Light (1)		Appelez-nous	-
13	3148719		Indicator Light (1)		Appelez-nous	-
14	3183117		Designer White Mdl (infinite Switch)				$ 24.34
14	3183118		Knob, Control (4)				$ 23.04
15	3183107		Designer White Mdl (thermostat)		Appelez-nous	-
15	3183106		Knob, Control		Appelez-nous	-
16	313570		Tube Clip		Appelez-nous	-
17	3187332		Rear Cover Control Panel		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
18	313101		Lens, Amber (3)		Appelez-nous	-
19	313608		Shield, Glass (2)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
20	3183110		Designer White Mdl (selector)		Appelez-nous	-
20	3183109		Knob, Control		Appelez-nous	-
21	3169182		Knob, Timer (3) (white/almond Mdl.)		Appelez-nous	-
21	3169184		Knob, Timer (3) (designer White Mdl)		Appelez-nous	-
