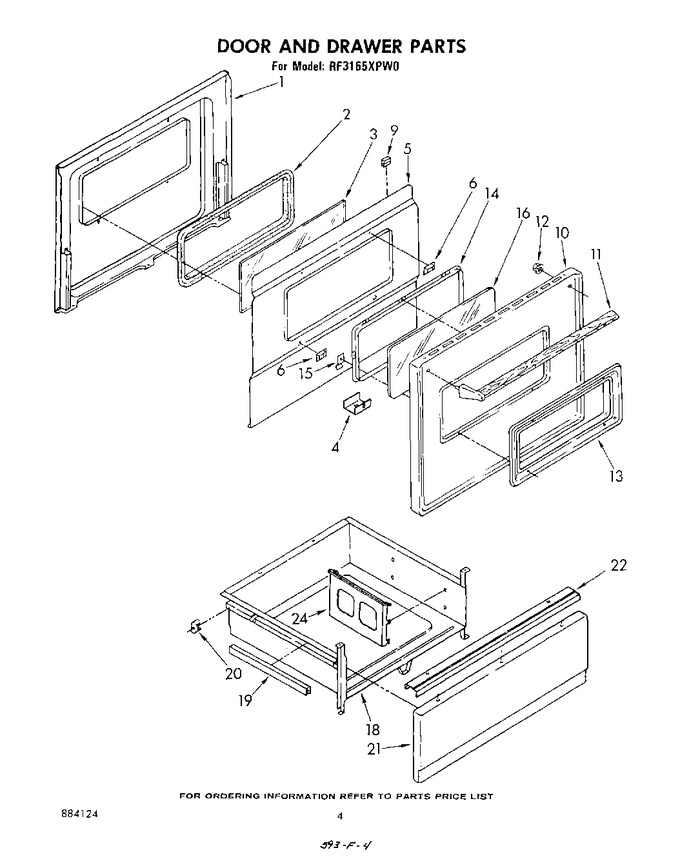

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329687		Liner, Door		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (3)		Appelez-nous	-
1	WP488627		Screw, 8a X 1/2 (2)   (Replaces: 338156)				$ 8.11
2	258711		Seal, Window (small)		Appelez-nous	-
3	258988		Glass, Inner		Appelez-nous	-
4	309137		Spacer, Door (2)		Appelez-nous	-
4	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
5	307924		Baffle, Insulation		Appelez-nous	-
6	258990		Spacer, Baffle (4)		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
9	312783		Bumper, Rubber (4)		Appelez-nous	-
10	307888		Panel, Oven Door (white)		Appelez-nous	-
10	307896		Panel, Oven Door (almond)		Appelez-nous	-
10	307894		Panel, Oven Door (harvest Gold)		Appelez-nous	-
10	313176		Panel, Oven Door (platinum)		Appelez-nous	-
10	313175		Panel, Oven Door (toast)		Appelez-nous	-
11	313455		Handle, Oven Door		Appelez-nous	-
12	WP308499		Palnut (2)   (Replaces: 308499)				$ 7.30
13	309173		Frame, Window (30`` Small)		Appelez-nous	-
14	307792		Retainer, Glass		Appelez-nous	-
14	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
15	307731		Clip, Frame (3)		Appelez-nous	-
16	309133		Screw, 8-a X 5/8 (2)		Appelez-nous	-
16	307732		Glass, Outer		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
21	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 11.26
21	309923		Panel Drawer (black)		Appelez-nous	-
21	313172		Panel, Drawer (platinum)		Appelez-nous	-
21	313171		Panel, Drawer (toast)		Appelez-nous	-
21	307935		Panel Drawer (white)		Appelez-nous	-
21	307939		Panel, Drawer (almond)		Appelez-nous	-
22	313337		Handle, Drawer		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 8.11
24	357645		Rack, Literature		Appelez-nous	-
