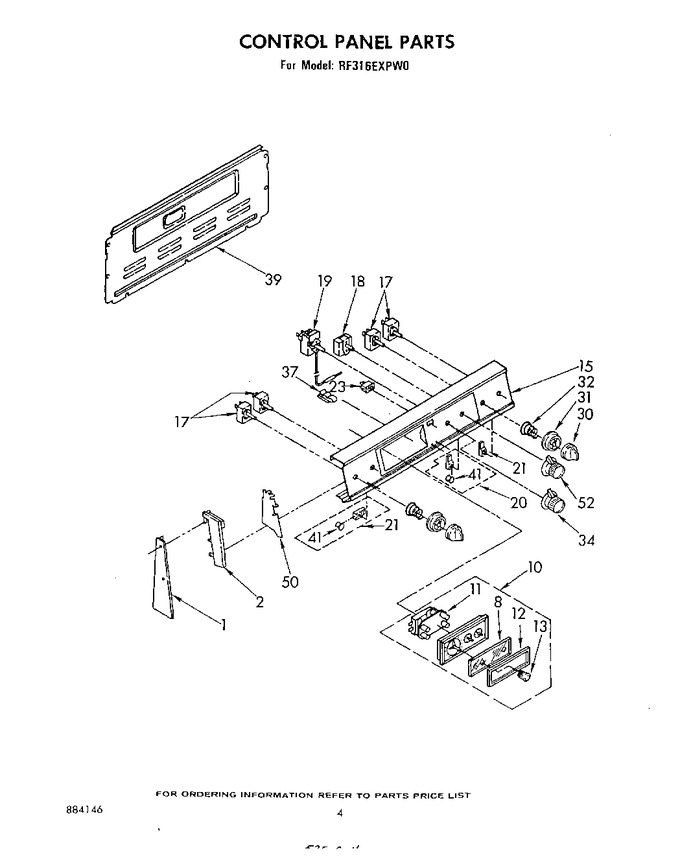

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313189		End Trim R.h.		Appelez-nous	-
1	313188		End Trim L.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.82
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
8	309821		Glass, Timer		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
10	310792		Timer, Auto		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
12	309823		Bezel, Timer		Appelez-nous	-
13	308440		Knob, Timer (3)		Appelez-nous	-
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
15	313713		Panel, Control		Appelez-nous	-
17	W10900107		Switch, Infinite (use W/6`` Surface Unit (3))   (Replaces: 311837)			Immediately	$ 57.63
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
17	W10900107		Switch, Infinite (use W/8`` Surface Unit (1))   (Replaces: 311836)			Immediately	$ 57.63
18	310349		Switch, Selector (4 Position)		Appelez-nous	-
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
19	WP313808		Screw, 6-32 X 1/2 (2)   (Replaces: 311932)				$ 7.60
19	308485		Thermostat		Appelez-nous	-
20	313111		Light, Indicator (1) (includes Illus. 41)		Appelez-nous	-
21	313102		Light, Indicator (surface Unit) (2) (includes Illus. 41)				$ 66.48
23	WP4314961		Switch, Oven Light   (Replaces: 313357)				$ 89.48
30	WP307458		Knob, Control (4)   (Replaces: 307458)				$ 19.11
31	307456		Bezel, Knob (4)				$ 31.10
32	307828		Spring, Knob (4)		Appelez-nous	-
34	328709		Knob, Control		Appelez-nous	-
34	310410		Screw		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
39	313195		Rear Cover Control Panel		Appelez-nous	-
41	313101		Lens, Amber (3)		Appelez-nous	-
50	313608		Shield, Glass (2)		Appelez-nous	-
50	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
52	310410		Screw		Appelez-nous	-
52	328707		Knob, Control		Appelez-nous	-
52	WP688805		Spring   (Replaces: 688805)			Immediately	$ 7.81
