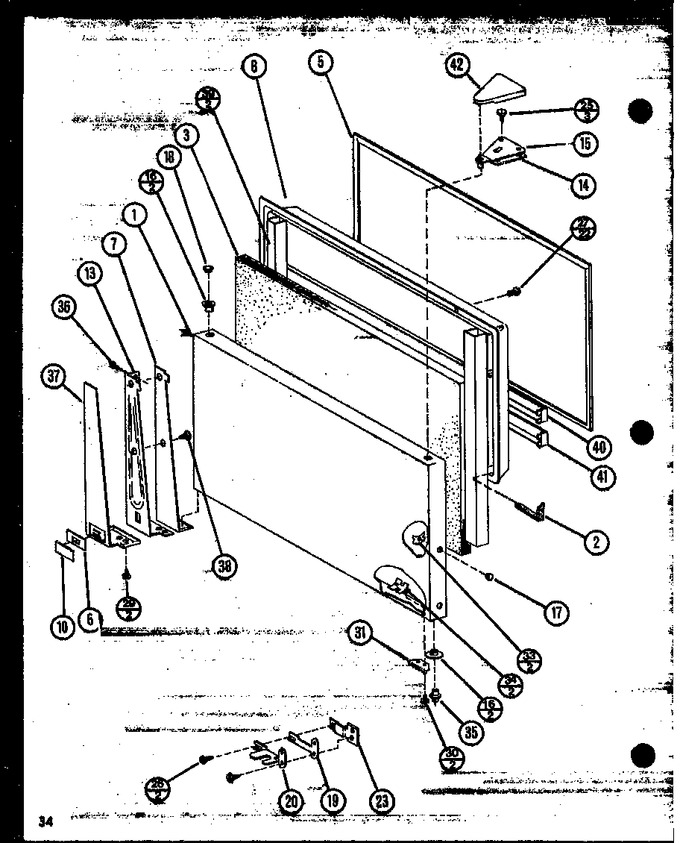

| 1 | D7745204 | Door Frz W Tr20 |
|
- | |||||
| 1 | D7745206 | Upper Door Pan, Almond |
|
- | |||||
| 1 | D7745211 | Dr Frz G-t-tr520k1 |
|
- | |||||
| 2 | B0523563 | Insulation Ft. K |
|
- | |||||
| 3 | B5683513 | Insulation |
|
- | |||||
| 5 | D7605108 | Gasket |
|
- | |||||
| 6 | C8962701 | Pad Nameplate |
|
- | |||||
| 7 | D7745009 | Handle Pad Inner |
|
- | |||||
| 7 | D7745007 | Handle Pad Inner W |
|
- | |||||
| 7 | D7745011 | Handle Pad Inner L K |
|
- | |||||
| 8 | D7869603 | Inner Door Panel Fz. |
|
- | |||||
| 10 | C8962619 | Nameplate |
|
- | |||||
| 13 | D7744801 | Door Handle |
|
- | |||||
| 14 | B8389003 | Shim, Top Hinge, .016 |
|
- | |||||
| 14 | B8389002 | Shim Top Hinge |
|
- | |||||
| 14 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 15 | B5744301 | Hinge |
|
- | |||||
| 16 | C3652901 | Bushing, Hinge Pin |
|
- | |||||
| 17 | M0311302 | Plug Button |
|
- | |||||
| 17 | M0311303 | Plug Button |
|
- | |||||
| 17 | M0311301 | Plug Button |
|
- | |||||
| 18 | M0310601 | Plug |
|
- | |||||
| 18 | M0310606 | Plug |
|
- | |||||
| 18 | M0310608 | Plug |
|
- | |||||
| 19 | B8351401 | Shim K |
|
- | |||||
| 19 | B8351402 | Shim K |
|
- | |||||
| 19 | B8351403 | Shim, Center Hinge |
|
- | |||||
| 20 | C8948601 | Center Hinge Bracket |
|
- | |||||
| 23 | C8925501 | Kit, Tap Plate & Screw |
|
- | |||||
| 25 | R9800670 | Kit, Screw (Replaces: M0257244) |
|
$ 10.58 | |||||
| 26 | M0226831 | Screw |
|
- | |||||
| 27 | M0219717 | Screw |
|
- | |||||
| 29 | WPW10348409 | Screw (Replaces: M0222416) |
|
Immediately | $ 8.20 | ||||
| 30 | M0203458 | Screw |
|
- | |||||
| 31 | C8894802 | Door Stop |
|
- | |||||
| 33 | B8361401 | Nut |
|
- | |||||
| 34 | B8363501 | Nut |
|
- | |||||
| 35 | B8373101 | Center Pin Hinge |
|
- | |||||
| 36 | M0203931 | Screw, Tf |
|
- | |||||
| 37 | D7744909 | Pad |
|
- | |||||
| 37 | D7744913 | Pad-outer Handle |
|
- | |||||
| 37 | D7744911 | Pad |
|
- | |||||
| 38 | M0215115 | Screw |
|
- | |||||
| 39 | C8987106 | Seal Door Dike |
|
- | |||||
| 40 | D7869801 | Retainer Cant. Door V |
|
- | |||||
| 41 | D7869901 | Shelf, Door |
|
- | |||||
| 42 | D7872104 | Cover Hinge |
|
- | |||||
| 42 | D7872105 | Cover Hinge L |
|
- | |||||
| 42 | D7872103 | Cover Hinge L |
|
- |
