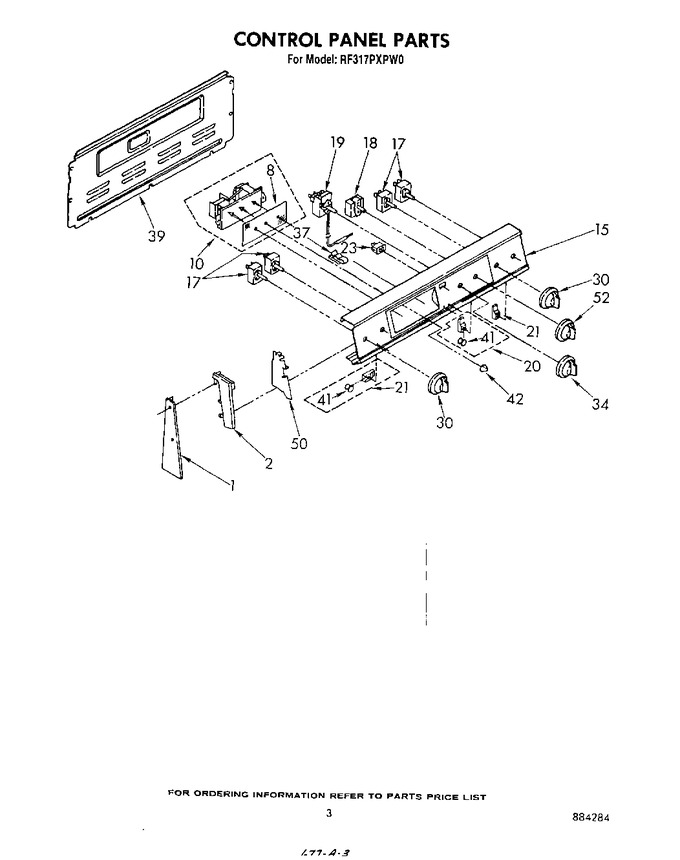

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	313189		End Trim R.h.		Appelez-nous	-
1	313188		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
8	313513		Glass, Timer		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
10	3148053		Timer, Auto		Appelez-nous	-
15	313239		Panel, Control		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
17	WP3149404		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 311857)			Immediately	$ 61.45
17	WP3149400		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 311858)			Immediately	$ 90.51
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
18	313062		Switch, Selector (4 Position)		Appelez-nous	-
19	311498		Thermostat (alt.)		Appelez-nous	-
19	310864		Thermostat (alt.)		Appelez-nous	-
19	661150		Thermostat		Appelez-nous	-
20	314031		Light, Indicator (1) (includes Illus. 41)				$ 62.88
21	313102		Light, Indicator (surface Unit) (2) (includes Illus. 41)				$ 66.48
23	WP4314961		Switch, Oven Light   (Replaces: 314134)				$ 93.95
30	330171		Knob, Control (4)		Appelez-nous	-
34	330170		Knob, Control		Appelez-nous	-
34	310410		Screw (2)		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
39	313195		Rear Cover Control Panel		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
41	313101		Lens, Amber (3)		Appelez-nous	-
42	313311		Spring, Knob		Appelez-nous	-
42	330206		Knob, Timer (3)		Appelez-nous	-
50	313608		Shield, Glass (2)		Appelez-nous	-
50	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
52	330173		Knob, Control		Appelez-nous	-
52	WP688805		Spring   (Replaces: 688805)			Immediately	$ 8.20
	WP313808		Screw, 6-32 X 1/2 (2)   (Replaces: 311932)				$ 8.30
