SELECT A DIAGRAM

02 - Cooktop


03 - Control Panel


04 - Door And Drawer , Literature And Optional


05 - Oven


06 - Wiring Harness

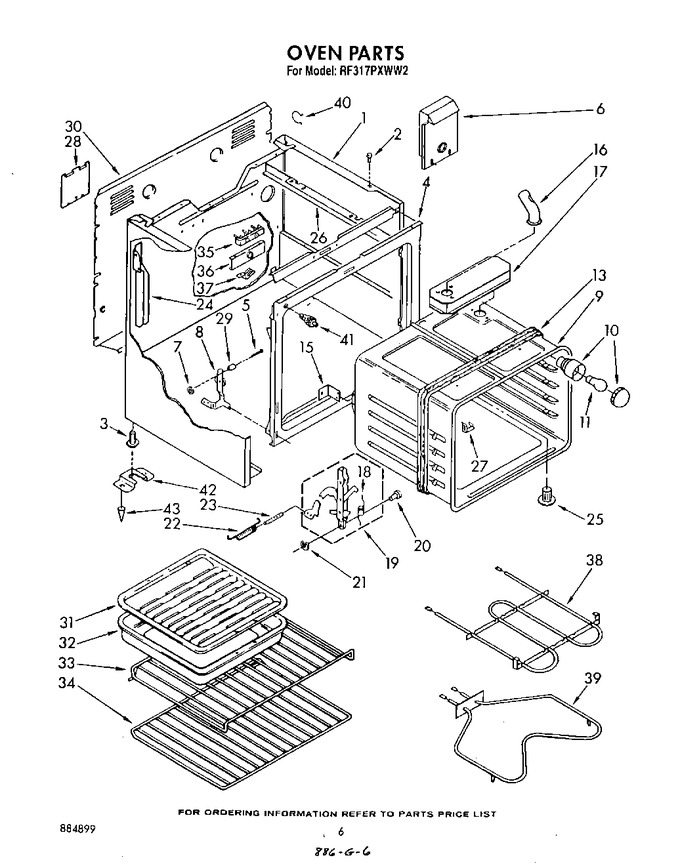

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 8.47
1	330090		Main Chassis (almond)		Appelez-nous	-
1	330086		Main Chassis (white)		Appelez-nous	-
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
2	238614		Bumper, Cooktop (2)				$ 84.79
3	WPW10058460		Leg, Leveling (4)   (Replaces: 3150150)			Immediately	$ 8.24
4	311056		Screw (2)		Appelez-nous	-
4	3150537		Screw (1)		Appelez-nous	-
4	3172204		Frame, Front		Appelez-nous	-
5	307985		Pin, Hinge				$ 29.54
6	WP488627		Screw (2)   (Replaces: 342055)				$ 8.11
6	3171381		Box, Vent		Appelez-nous	-
7	308306		Pushnut		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
8	327890		Hinge (r.h.)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
9	311056		Screw (3)		Appelez-nous	-
9	3172546		Oven (standard)		Appelez-nous	-
10	W11594027		Socket Assembly   (Replaces: 3150505)			Immediately	$ 87.01
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
13	309107		Seal, Heat				$ 63.50
15	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
15	311220		Bracket, Oven (mounting)		Appelez-nous	-
16	3148906		Vent, Oven		Appelez-nous	-
16	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.87
17	3147076		Box, Vent		Appelez-nous	-
18	308207		Spring, Door Stop		Appelez-nous	-
19	329712		Channel, Arm (2)		Appelez-nous	-
20	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 15.81
21	307594		Ring, Retainer (2)		Appelez-nous	-
22	308127		Spring, Oven Door (2)				$ 11.75
23	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 12.74
24	313196		Support, L.h. Channel		Appelez-nous	-
24	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
24	313197		Support, R.h. Channel		Appelez-nous	-
25	3147242		Eliminator, Smoke		Appelez-nous	-
26	3147646		Support, Chassis		Appelez-nous	-
26	254217		Screw, 10a X 3/8		Appelez-nous	-
27	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 87.08
28	307972		Cover, Service		Appelez-nous	-
28	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 8.47
29	309111		Snubber, Door (2)		Appelez-nous	-
30	WP681414		Screw (7)   (Replaces: 343641)			Immediately	$ 8.47
30	3148975		Panel, Rear		Appelez-nous	-
31	4396923		Grill, Brioler   (Replaces: 3147563)			Immediately	$ 60.71
32	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 60.71
33	308172		Rack, Oven (offset)		Appelez-nous	-
34	308173		Rack, Oven (straight)		Appelez-nous	-
35	98884		Screw (2)		Appelez-nous	-
35	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 30.13
35	WP112432		Nut (6)   (Replaces: 112432)				$ 8.63
36	3150190		Bracket, Service		Appelez-nous	-
36	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 8.47
37	313660		Clip		Appelez-nous	-
37	WP681414		Screw   (Replaces: 690989)			Immediately	$ 8.47
37	308498		Strap, Ground		Appelez-nous	-
38	WP660579		Unit, Parts (alt.)   (Replaces: 311713)				$ 164.26
38	WP660579		Unit, Parts   (Replaces: 660579)				$ 164.26
38	WP660579		Unit, Parts (alt.)   (Replaces: 311714)				$ 164.26
39	WP308180		Unit, Bake (alt.)   (Replaces: 308180)				$ 107.69
39	WP308180		Unit, Bake   (Replaces: 661170)				$ 107.69
39	WP308180		Unit, Bake (alt.)   (Replaces: 313827)				$ 107.69
40	16515		Clip, Wiring Harness   (Replaces: 313438)				$ 20.53
41	310345		Switch, Door				$ 94.86
42	3148604		Screw (2)		Appelez-nous	-
42	8273888A		Bracket, Anchor   (Replaces: 3148603)				$ 32.62
43	3148605		Anchor, Plastic		Appelez-nous	-
	3150532		Screw (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
