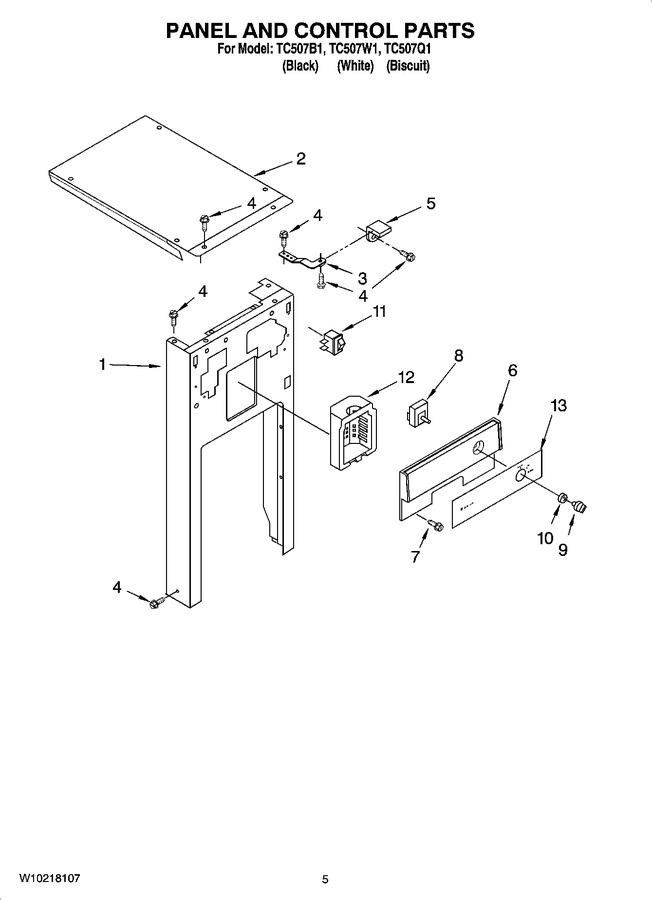

05 - Panel And Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871072		Panel, Front (black)				$ 246.38
1	9871073		Panel, Front (white)		Appelez-nous	-
1	9871575		Panel, Front (biscuit)		Appelez-nous	-
2	9871825		Top, Cabinet		Appelez-nous	-
3	W11729437		Bracket, Retainer   (Replaces: 9871993)			Immediately	$ 24.48
4	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 8.18
5	WP780239		Bracket, Mounting (alternate)   (Replaces: 780239)				$ 28.53
6	9871839T		Console (biscuit)		Appelez-nous	-
6	WP9871839B		Console (black)   (Replaces: 9871839B)				$ 199.33
6	9871839W		Console (white)		Appelez-nous	-
7	246131		Screw, 6-20 X 3/8		Appelez-nous	-
8	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
9	9871659		Knob, Rotary Switch (biscuit)		Appelez-nous	-
9	WP9870487		Knob, Rotary Switch (black)   (Replaces: 9870487)				$ 66.00
9	W10852377		Knob, Rotary Switch (white)   (Replaces: 9870486)				$ 57.94
10	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
11	9871829		Switch, Drawer Tilt (black)				$ 93.95
11	WP4387911		Switch, Drawer Tilt (white)   (Replaces: 4152058)			Immediately	$ 41.64
12	9871858		Compartment, Deodorant (biscuit)		Appelez-nous	-
12	777471		Compartment, Deodorant (white)				$ 7.26
12	9871066		Compartment, Deodorant (black)		Appelez-nous	-
13	9871850		Insert, Console (biscuit)		Appelez-nous	-
13	9871844		Insert, Console (white)		Appelez-nous	-
13	9871845		Insert, Console (black)				$ 61.09
