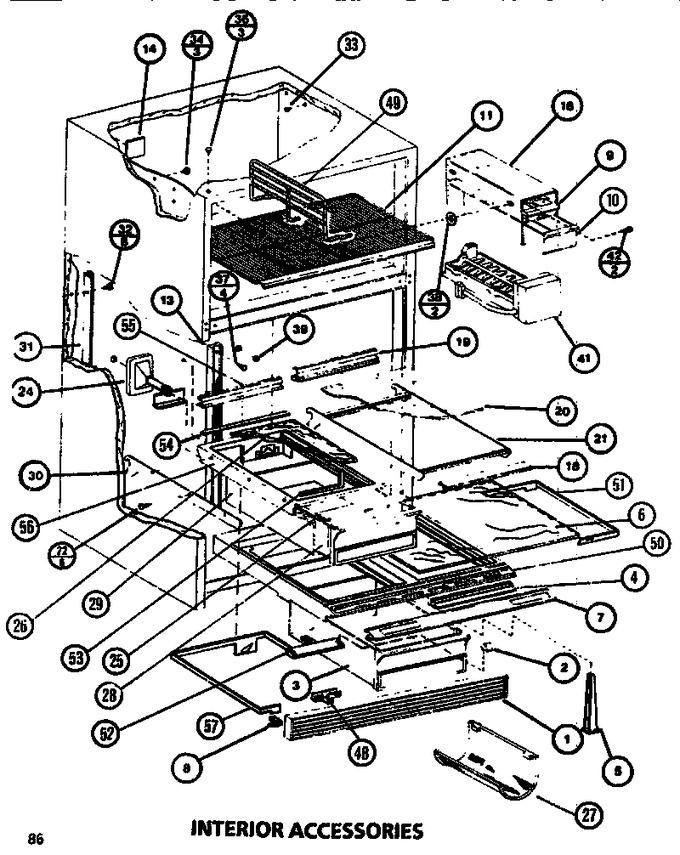

01 - Compressor Compartment


02 - Functional (ref/frz)


03 - Functional (ref/frz)


04 - Fz Door


05 - Interior Accessories


06 - Rear Components


07 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520503		Grille-toe-b K		Appelez-nous	-
2	C8991201		Knob, Crisper Control		Appelez-nous	-
3	D7581027		Net Pan, Crisper		Appelez-nous	-
4	10042101		Seal Crisper		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7421259		Glass Crisper Top Gg		Appelez-nous	-
7	D7616635		Trim Front Crisper		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
9	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
10	D7620012		Ice Bin		Appelez-nous	-
11	D7580704		Shelf, Frz		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
14	D7874402		Cover-fl Tb/plug		Appelez-nous	-
16	D7620108		Rack, Ice Service		Appelez-nous	-
18	C8913507		Trim, Front Shelf		Appelez-nous	-
19	C8913603		Trim, Shelf Rear		Appelez-nous	-
20	D7421282		Glass Shelf		Appelez-nous	-
21	D7871003		Frame, Cant.		Appelez-nous	-
22	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
24	D7859303		Grommet, Meatkeeper		Appelez-nous	-
25	C8913527		Trim, Front, Shelf		Appelez-nous	-
26	D7421254		Glass Shelf M.k		Appelez-nous	-
27	D7547603		Rack, Bottle		Appelez-nous	-
28	D7698317		Meat Pan		Appelez-nous	-
29	D7698107		Sleeve M.k.		Appelez-nous	-
30	D7862905		Blank Side Rail		Appelez-nous	-
30	D7862906		Blank Side Rail		Appelez-nous	-
31	D7599103		Ladder Side		Appelez-nous	-
32	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
33	M0311301		Plug Button		Appelez-nous	-
34	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 8.21
36	M0310716		Plug		Appelez-nous	-
36	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 8.21
36	M0310720		Plug		Appelez-nous	-
37	M0230923		Screw		Appelez-nous	-
38	M0270508		Washer		Appelez-nous	-
39	B8362502		Insul. Mk Plug		Appelez-nous	-
41	Y00000000		See Note Model Ic-3, Mfg. No. P7621304w, Add-on Ice Maker -- (available From Sales)		Appelez-nous	-
42	M0219559		Screw		Appelez-nous	-
48	D7859401		Slide-mk Control		Appelez-nous	-
49	D7806001		Shelf Wire		Appelez-nous	-
50	D7856504		Frame		Appelez-nous	-
51	D7859601		Band Crisper Control		Appelez-nous	-
52	D7860602		Slide Crisper Cont. A		Appelez-nous	-
53	A3263905		Gasket-per Ft		Appelez-nous	-
54	10043101		Ext. Rear Glass		Appelez-nous	-
55	C8990403		Trim		Appelez-nous	-
56	D7853302		Frame M.k. V		Appelez-nous	-
57	D7859501		Band M.k. Control		Appelez-nous	-
NI	R0179140		Crisper Top Assembly		Appelez-nous	-
NI	R0179141		Glass Crisper Top Assy		Appelez-nous	-
NI	D7871110		Glass Shelf Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
NI	D7871112		Glass Shelf Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
