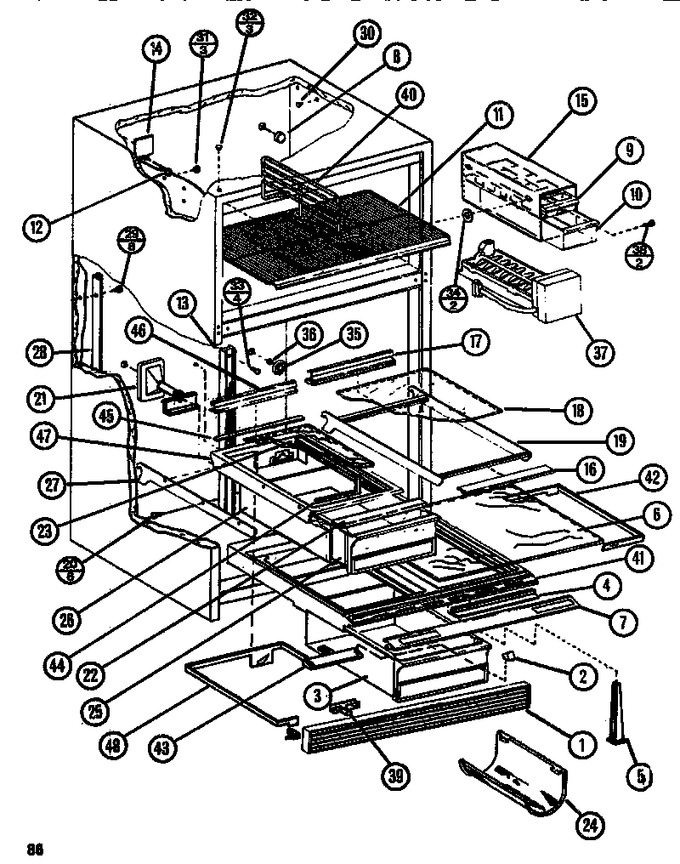

01 - Compressor Compartment


02 - Functional (ref/frz)


03 - Functional (ref/frz)


04 - Fz Door


05 - Interior Accessories


06 - Rear Components


07 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520514		Grille-toe L		Appelez-nous	-
1	D7520512		Grille-toe K		Appelez-nous	-
1	D7520510		Grille-toe-b K				$ 44.22
2	10038401		Knob, Crisper Control		Appelez-nous	-
3	D7581034		Pan-crisper		Appelez-nous	-
4	D7718402		Seal Crisper		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	10036016		Glass Crisper Top Gg		Appelez-nous	-
7	D7616655		Trim Crisper		Appelez-nous	-
8	M0310305		Plug, Button (wht)		Appelez-nous	-
9	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
10	D7620025		Bin-ice		Appelez-nous	-
11	D7580706		Shelf, Frz		Appelez-nous	-
12	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
13	D7599002		Ladder, Center		Appelez-nous	-
14	D7874402		Cover-fl Tb/plug		Appelez-nous	-
15	D7620110		Rack, Ice		Appelez-nous	-
16	C8913535		Trim Frz Door		Appelez-nous	-
17	C8913610		Trim, Glass Shelf		Appelez-nous	-
18	10036021		Shelf, Glass		Appelez-nous	-
19	D7871015		Fram Cant.		Appelez-nous	-
20	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
21	D7859306		Grommet M.k.		Appelez-nous	-
22	C8913541		Trim Front		Appelez-nous	-
23	10036022		Shelf M.k. Glass		Appelez-nous	-
24	D7547614		Rack, Bottle		Appelez-nous	-
25	D7698330		Meat Pan		Appelez-nous	-
26	D7698113		Sleeve M.k.		Appelez-nous	-
27	D7862970		Side Rail		Appelez-nous	-
27	D7862971		Side Rail		Appelez-nous	-
28	D7599105		Ladder, Side		Appelez-nous	-
29	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 7.30
30	M0311301		Plug Button		Appelez-nous	-
31	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 8.21
32	M0310720		Plug		Appelez-nous	-
32	M0310716		Plug		Appelez-nous	-
32	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 8.21
33	M0230923		Screw		Appelez-nous	-
34	M0270508		Washer		Appelez-nous	-
35	M0310314		Plug		Appelez-nous	-
36	B8362502		Insul. Mk Plug		Appelez-nous	-
37	Y00000000		See Note Model Ic-3, Mfg. No. P7621304w, Add-on Ice Maker -- (available From Sales)		Appelez-nous	-
38	M0219559		Screw		Appelez-nous	-
39	D7859402		Slide-mk Control		Appelez-nous	-
40	D7806002		Divider, Wire		Appelez-nous	-
41	D7856505		Frame Crisper		Appelez-nous	-
42	D7859601		Band Crisper Control		Appelez-nous	-
43	YD7860605		Slide, Crisper		Appelez-nous	-
44	A3263905		Gasket-per Ft		Appelez-nous	-
45	10043101		Ext. Rear Glass		Appelez-nous	-
46	C8990406		Trim M.k Top Rear		Appelez-nous	-
47	D7853303		Frame,meatkeeper		Appelez-nous	-
48	D7859504		Band M.k. Control		Appelez-nous	-
NI	10144008		Glass Shelf Assy		Appelez-nous	-
NI	R0179165		Glass Crisper Assy		Appelez-nous	-
NI	10144007		Glass Shelf Assy		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58

    View Diagram in Separate Window       Print Part List
