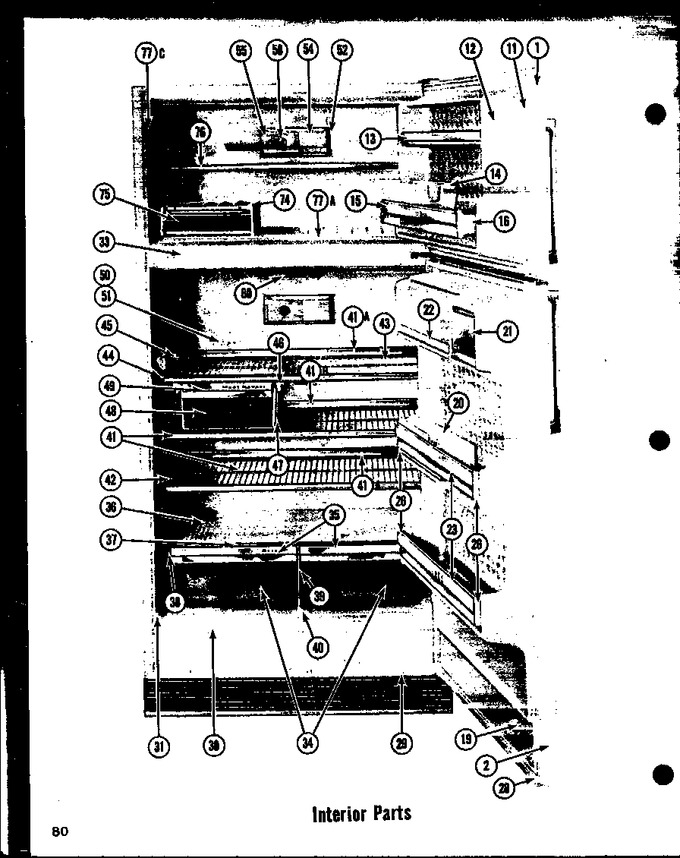

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	D3973701		Door Gasket Assembly		Appelez-nous	-
11	M0241118		Screw-sm		Appelez-nous	-
12	D3977101		Inner Door Panel, Fz		Appelez-nous	-
13	D3935209		Retainer		Appelez-nous	-
15	D3976712		Retainer		Appelez-nous	-
16	B0577901		Support Bar, Package Retainer		Appelez-nous	-
16	D3976803		Support, Package Retainer, R.h		Appelez-nous	-
16	D3976804		Support, Package Retainer, L.h		Appelez-nous	-
20	D3984401		Container, Egg		Appelez-nous	-
21	C3589301		Door, Butter Keeper		Appelez-nous	-
22	D3935208		Retainer		Appelez-nous	-
23	D3976708		Retainer, Package, Ref Door		Appelez-nous	-
26	D3976802		Support, Package Retainer, L.h		Appelez-nous	-
26	D3976801		Support, Package Retainer, R.h		Appelez-nous	-
28	D3974201		Gasket, Ref Door		Appelez-nous	-
30	D3980601		Br Frame		Appelez-nous	-
31	D3951708		Breaker Frame, Ref Side, L.h.		Appelez-nous	-
33	C3603603		Mullion Cap, Coppertone, R.h.		Appelez-nous	-
33	C3603605		Mullion Cap, Avocado, R.h.		Appelez-nous	-
33	C3603601		Center Mullion		Appelez-nous	-
34	D3966904		Pan, Crisper		Appelez-nous	-
35	C3586006		Trim Crisper Handle		Appelez-nous	-
37	B0570904		Trim A		Appelez-nous	-
38	B0597601		Support		Appelez-nous	-
39	B0571002		Support		Appelez-nous	-
40	B0571201		Support		Appelez-nous	-
46	D3976001		Top, Meat Pan		Appelez-nous	-
47	D3975801		Sleeve, Meat Keeper		Appelez-nous	-
48	D3975701		Pan, Meat Keeper		Appelez-nous	-
49	C3602801		Trim, Meat Keeper Pan		Appelez-nous	-
50	B5615401		Escutcheon, Meat Keeper Contro		Appelez-nous	-
51	A0064001		Lever And Linkage Assembly, Me		Appelez-nous	-
52	D3981101		Backer Plate		Appelez-nous	-
54	D3953302		Air Deflector, Air Damper Cont		Appelez-nous	-
55	B0592801		Thinplate		Appelez-nous	-
58	C3588402		Knob		Appelez-nous	-
60	A3083901		Switch		Appelez-nous	-
60	D3982201		Top Assembly, Ref		Appelez-nous	-
NI	M0310303		Kit, Plug Button		Appelez-nous	-
NI	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
NI	M0310203		Plug		Appelez-nous	-
NI	A3084701		Pivot		Appelez-nous	-
NI	M0580001		Grommet, Screw		Appelez-nous	-
NI	M0203003		Screw, Machine, No. 4 - 40 X 5		Appelez-nous	-
NI	M0211530		Screw		Appelez-nous	-
NI	M0211917		Screw		Appelez-nous	-
NI	B0530005		Support K		Appelez-nous	-
NI	B0573504		Insulation		Appelez-nous	-
NI	A3054301		Spacer		Appelez-nous	-
NI	D3948402		Heater		Appelez-nous	-
NI	M0310002		Plug		Appelez-nous	-
NI	B5612001		From Door Slab		Appelez-nous	-
NI	D3990601		Drain Pan		Appelez-nous	-
NI	B5609701		Support Block		Appelez-nous	-
NI	M0113001		Clip		Appelez-nous	-
NI	A3069801		Support Bar Plate		Appelez-nous	-
NI	D3951707		Breaker Frame, Ref Side, R.h.		Appelez-nous	-
NI	A3081005		Insulation Block, Breaker Fram		Appelez-nous	-
NI	B0590701		End Cap		Appelez-nous	-
NI	A3081006		Insulation Block, Breaker Fram		Appelez-nous	-
NI	M0310008		Plug Button		Appelez-nous	-
NI	A3081007		Insulation Block, Breaker Fram		Appelez-nous	-
NI	A0353901		Plug		Appelez-nous	-
NI	B5617301		Cover, Linkage		Appelez-nous	-
NI	A3102801		Grommet		Appelez-nous	-
NI	M0115201		Clip		Appelez-nous	-
NI	C3600003		Insulation, Fibreglas, Fz Door		Appelez-nous	-
NI	B0590702		End Cap, L.h.		Appelez-nous	-
NI	M0219233		Screw		Appelez-nous	-
NI	M0225016		Screw-tc, Indented Hex Head		Appelez-nous	-
