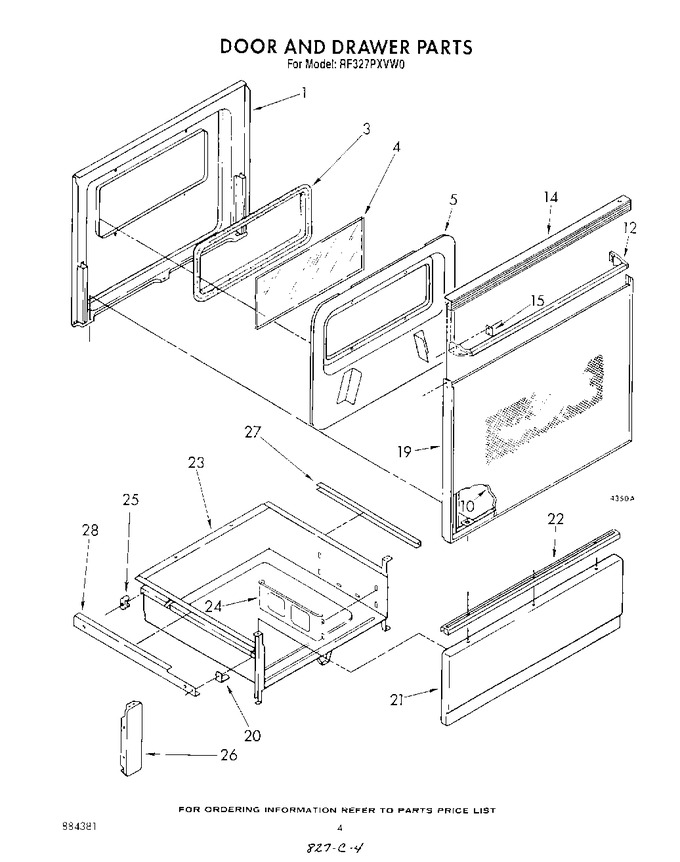

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3170710 | Liner, Door |
|
- | |||||
| 1 | 311056 | Screw, 10a X 1/2 (4) |
|
- | |||||
| 1 | 307748 | Screw, 10a X 1/2 (5) |
|
- | |||||
| 3 | 3148183 | Seal, Window |
|
$ 7.41 | |||||
| 4 | 3148179 | Glass, Inner |
|
- | |||||
| 5 | 3148443 | Screw (4) |
|
- | |||||
| 5 | 3148179 | Retainer, Insulation |
|
- | |||||
| 10 | 3148185 | Panel, Glass |
|
- | |||||
| 12 | WP355515 | Screw, 8a X 7/8 (4) (Replaces: 355515) |
|
$ 8.48 | |||||
| 12 | 3148228 | Handle, Door |
|
- | |||||
| 14 | 3148223 | Top, Door |
|
- | |||||
| 15 | 3148282 | Clip, Mtg (2) |
|
$ 8.69 | |||||
| 19 | 3148235 | Frame, Panel |
|
- | |||||
| 20 | 307980 | Screw (2) |
|
- | |||||
| 20 | 3149257 | Glide, Front (2) |
|
- | |||||
| 21 | 307935 | Panel Drawer (white) |
|
- | |||||
| 21 | 307939 | Panel, Drawer (almond) |
|
- | |||||
| 22 | 313337 | Handle, Drawer |
|
- | |||||
| 22 | WP488627 | Screw (2) (Replaces: 313349) |
|
$ 8.11 | |||||
| 23 | 327887 | Drawer, Utility |
|
- | |||||
| 24 | WP681414 | Screw (2) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 24 | 357645 | Rack, Literature |
|
- | |||||
| 25 | 307980 | Glide, Rear (2) |
|
- | |||||
| 25 | 307981 | Screw (2) |
|
- | |||||
| 26 | WP681414 | Screw (6) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 26 | 307981 | Braket, Mtg. (2) |
|
- | |||||
| 27 | 309329 | Protector, Side (2) |
|
- | |||||
| 28 | 242985 | Wire, Splicing 25` 14 Ga. 150~c (rotissorie Kit (rck 81)) |
|
- | |||||
| 28 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 28 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 28 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 28 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | ||||
| 28 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | ||||
| 28 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 28 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 28 | 3149255 | Rail, Side (r.h.) |
|
- | |||||
| 28 | 3149256 | Rail, Side (l.h.) |
|
- | |||||
| 28 | 307748 | Rail, Side (screw (4)) |
|
- | |||||
| 28 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 28 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 28 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 28 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 28 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 28 | 242826 | Wire, Splicing 25` 14 Ga. 150~c (white) |
|
- | |||||
| 28 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 28 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 28 | 242829 | Wire, Splicing 25` 14 Ga. 150~c (red 12 Ga. 200~c) |
|
- | |||||
| 28 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 28 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 28 | 242832 | Wire, Splicing 25` 14 Ga. 150~c (yellow Paint, Touch-up (1/2 Oz.)) |
|
- | |||||
| 28 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | |||||
| 28 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 109.25 | |||||
| 28 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 28 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 28 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 28 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | |||||
| 28 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 28 | 261888 | Wire, Splicing 25` 14 Ga. 150~c (new Avocado) |
|
- | |||||
| 28 | 261886 | Wire, Splicing 25` 14 Ga. 150~c (coffee) |
|
- | |||||
| 28 | 261890 | Wire, Splicing 25` 14 Ga. 150~c (harvest Gold) |
|
- | |||||
| 28 | 285365 | Wire, Splicing 25` 14 Ga. 150~c (toast) |
|
- | |||||
| 28 | 285366 | Wire, Splicing 25` 14 Ga. 150~c (platinum) |
|
- | |||||
| 28 | 285006 | Wire, Splicing 25` 14 Ga. 150~c (superior Black) |
|
$ 59.89 | |||||
| 28 | 350942 | Wire, Splicing 25` 14 Ga. 150~c (primer (white)) (Replaces: 206922) |
|
$ 94.14 | |||||
| 28 | 206925 | Wire, Splicing 25` 14 Ga. 150~c (leveler (thinner) (2 Oz.) Paint, Bulk (1 Qt.)) |
|
- | |||||
| 28 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 28 | 978883 | Wire, Splicing 25` 14 Ga. 150~c (almond (uncut)) |
|
- | |||||
| 28 | 261889 | Wire, Splicing 25` 14 Ga. 150~c (new Avocado (uncut)) |
|
- | |||||
| 28 | 261887 | Wire, Splicing 25` 14 Ga. 150~c (coffee (uncut)) |
|
- | |||||
| 28 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 28 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 28 | 285368 | Wire, Splicing 25` 14 Ga. 150~c (platinum (uncut)) |
|
- | |||||
| 28 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 28 | 261748 | Wire, Splicing 25` 14 Ga. 150~c (touch-up Continuous Clean (1 Oz.)) |
|
- | |||||
| 28 | 261582 | Wire, Splicing 25` 14 Ga. 150~c (grease) |
|
- | |||||
| 28 | 3147861 | Wire, Splicing 25` 14 Ga. 150~c (dressing Element) |
|
- |
