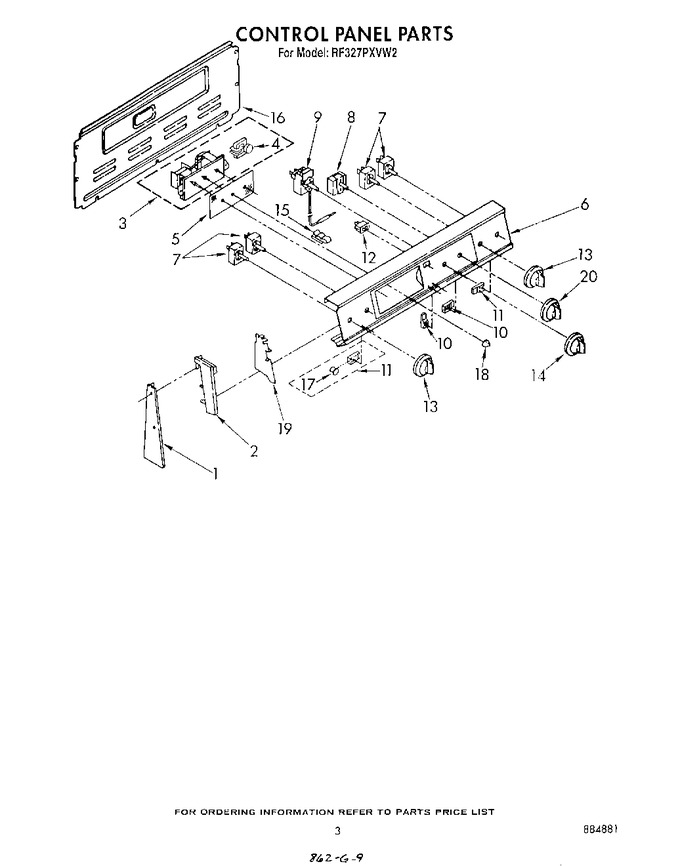

03 - Control Panel


04 - Door And Drawer , Lit/optional


05 - Oven


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313190		End Trim L.h.		Appelez-nous	-
1	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 8.47
1	313191		End Trim R.h.		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
3	3149836		Timer, Clock Includes No. 4		Appelez-nous	-
4	309822		Motor, Timer		Appelez-nous	-
5	3148852		Glass, Timer		Appelez-nous	-
6	3148834		Panel, Control		Appelez-nous	-
6	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
6	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
7	5500-287		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
7	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
7	WP3148952		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 3148952)			Immediately	$ 69.51
8	313061		Switch, Selector (3 Position)		Appelez-nous	-
8	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
9	311498		Thermostat, Oven Pyro (alt.)		Appelez-nous	-
9	661150		Thermostat, Oven Pyro		Appelez-nous	-
9	310864		Thermostat, Oven Pyro (alt.)		Appelez-nous	-
10	314031		Light, Indicator (1) (oven) (includes Illus. 17)				$ 62.88
11	313102		Light, Indicator (surface Unit) (2) (includes Illus. 17)				$ 66.48
12	WP4314961		Switch, Oven Light   (Replaces: 3148564)				$ 93.95
13	WP3149983		Knob, Infinite (4)   (Replaces: 3149983)				$ 24.39
14	3149987		Knob, Therm.				$ 25.12
15	313570		Tube Clip		Appelez-nous	-
16	313195		Rear Cover Control Panel		Appelez-nous	-
16	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
17	313101		Lens, Amber (3)		Appelez-nous	-
18	313311		Spring, Knob		Appelez-nous	-
18	330206		Knob, Timer (1)		Appelez-nous	-
19	313608		Shield, Glass (2)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
20	3149984		Knob, Selector		Appelez-nous	-
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
