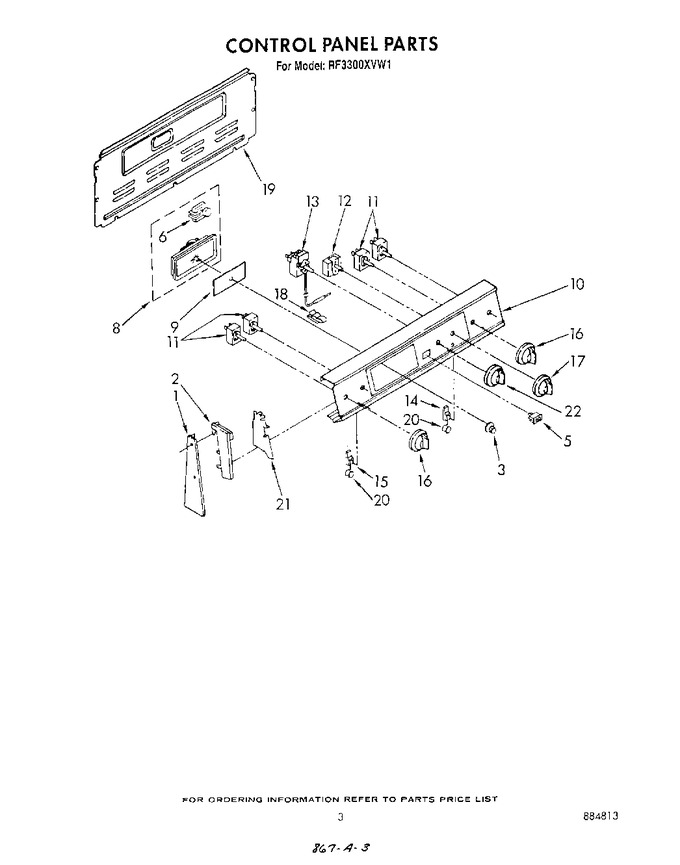

03 - Control Panel


04 - Oven , Lit/optional


05 - Section


06 - Door And Drawer


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
3	330206		Knob, Timer		Appelez-nous	-
3	313311		Knob, Spring		Appelez-nous	-
5	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 93.95
6	309822		Motor, Timer		Appelez-nous	-
8	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 11.87
8	3149836		Timer, Clock		Appelez-nous	-
9	3148852		Glass, Timer		Appelez-nous	-
10	3148834		Panel, Control		Appelez-nous	-
10	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
11	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
11	5500-287		Switch, Infinite (6`` Unit (2))   (Replaces: 3148951)			Immediately	$ 52.39
11	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
12	313061		Switch, Selector (3 Position)		Appelez-nous	-
12	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
13	311498		Thermostat, Oven (alt.)		Appelez-nous	-
13	310864		Thermostat, Oven (alt.)		Appelez-nous	-
13	661150		Thermostat, Oven		Appelez-nous	-
14	314031		Light, Indicator (oven) (includes Illus. 20)				$ 62.88
15	313102		Light, Indicator (surface Unit) (2) (includes Illus. 41)				$ 66.48
16	WP3149983		Knob, Infinite (4)   (Replaces: 3149983)				$ 24.39
17	3149984		Knob, Selector		Appelez-nous	-
18	313570		Tube Clip		Appelez-nous	-
19	313195		Rear Cover Control Panel		Appelez-nous	-
19	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
20	313101		Lens, Amber (3)		Appelez-nous	-
21	313608		Shield, Glass (2)		Appelez-nous	-
21	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
22	3149987		Knob, Thermostat				$ 25.12
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
