02 - Cooktop


03 - Control Panel


04 - Oven


05 - Wiring Harness


06 - Door And Drawer


07 - Oven (continued) , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

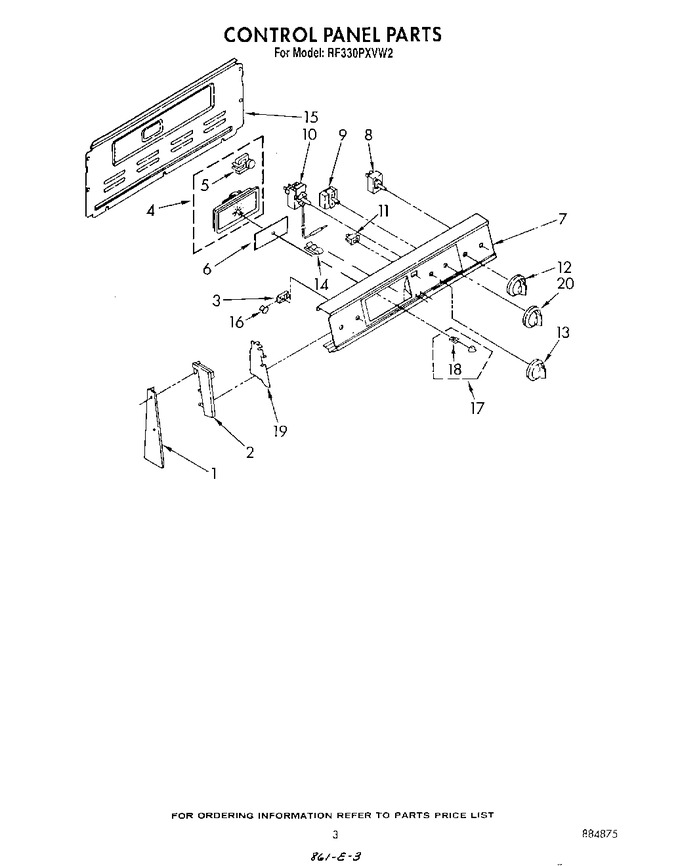

1	313190		End Trim L.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.82
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	313191		End Trim R.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
3	314031		Light, Indicator (oven On)				$ 62.88
3	313102		Light, Indicator (surface Unit (2))				$ 66.48
4	3149836		Timer, Clock		Appelez-nous	-
5	309822		Motor, Timer		Appelez-nous	-
6	3148852		Glass, Timer		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
7	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
7	3148834		Panel, Control		Appelez-nous	-
8	5500-287		Switch, Infinite (6`` Unit (2))   (Replaces: 3148951)			Immediately	$ 52.39
8	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
8	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
9	313061		Switch, Selector (3 Position)		Appelez-nous	-
9	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
10	661150		Thermostat, Oven		Appelez-nous	-
10	311498		Thermostat, Oven (alt.)		Appelez-nous	-
10	310864		Thermostat, Oven (alt.)		Appelez-nous	-
11	WP4314961		Switch, Oven Light   (Replaces: 3148564)				$ 89.48
12	WP3149983		Knob, Infinite (4) (surface Unit)   (Replaces: 3149983)				$ 23.23
13	3149987		Knob, Temp. Control				$ 25.12
14	313570		Tube Clip		Appelez-nous	-
15	313195		Rear Cover Control Panel		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
16	313101		Lens, Amber (3)		Appelez-nous	-
17	330206		Knob, Timer (1)		Appelez-nous	-
18	313311		Spring, Knob		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
19	313608		Shield, Glass (2)		Appelez-nous	-
20	3149984		Knob, Selector		Appelez-nous	-
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
