02 - Cooktop


03 - Control Panel


04 - Oven


05 - Wiring Harness


06 - Door And Drawer, Lit/optional


07 - Unit, Optional

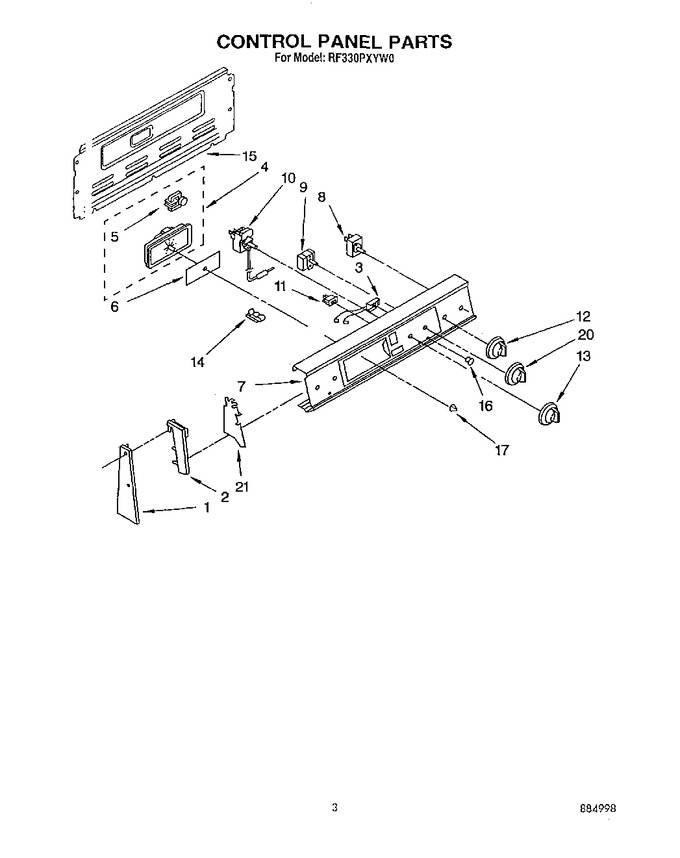

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
2	3150441		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3150442		End Cap L.h.		Appelez-nous	-
3	314031		Light, Indicator (oven)				$ 62.88
3	3150647		Light, Indicator (surface Unit)		Appelez-nous	-
4	3183059		Timer, Clock		Appelez-nous	-
5	309822		Motor, Timer		Appelez-nous	-
6	3148852		Glass, Timer		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
7	3183813		Control Panel		Appelez-nous	-
8	5500-287		Switch, Infinite (6`` Unit (2))   (Replaces: 3148951)			Immediately	$ 52.39
8	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 52.39
8	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
9	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
9	3150430		Switch, Selector (3 Position)				$ 66.71
10	661150		Thermostat, Oven		Appelez-nous	-
10	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
10	311498		(alt.)		Appelez-nous	-
10	310864		(alt.)		Appelez-nous	-
11	WP4314961		Switch, Oven Light   (Replaces: 3148564)				$ 93.95
12	3183118		Knob, Infinite (4) (surface Unit)				$ 23.04
13	3183106		Knob, Temp Control		Appelez-nous	-
14	313570		Tube Clip		Appelez-nous	-
15	313195		Rear Cover Control Panel		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
16	313101		Lens, Amber (2)		Appelez-nous	-
17	3169182		Knob, Timer (1)		Appelez-nous	-
20	3183109		Knob, Selector		Appelez-nous	-
21	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
21	313608		Shield (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
