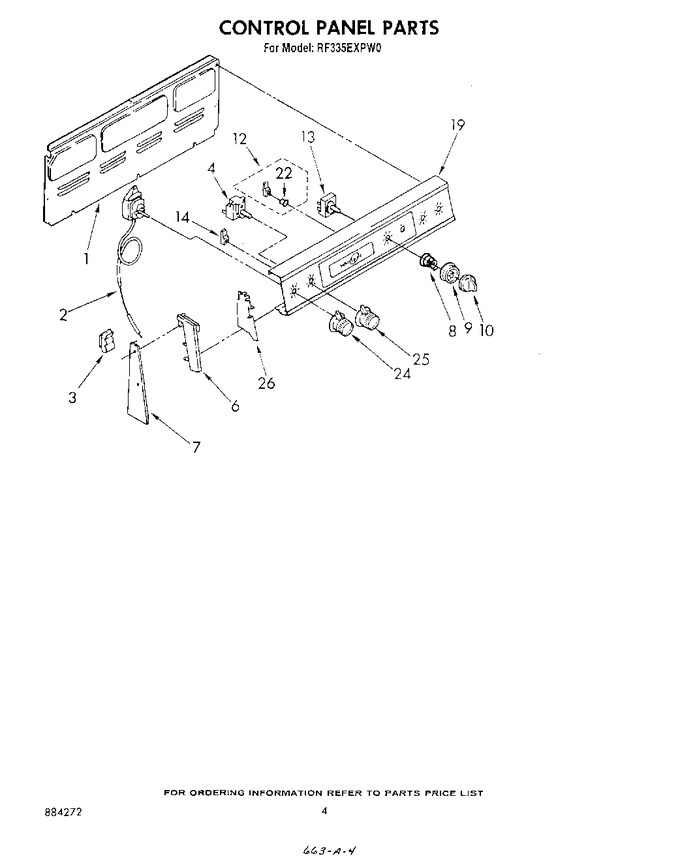

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door And Drawer
03 - Control Panel
04 - Oven
05 - Literature And Optional
06 - Cooktop
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 1 | 313195 | Cover, Rear |
|
- | |||||
| 2 | 308789 | Thermostat, Oven (alternate) |
|
- | |||||
| 2 | 308485 | Thermostat, Oven |
|
- | |||||
| 2 | 308483 | Thermostat, Oven (alt.) |
|
- | |||||
| 3 | 313570 | Clip, Tube |
|
- | |||||
| 4 | WP486579 | Screw, 8-32 X 1/4 (2) (Replaces: 311865) |
|
$ 7.89 | |||||
| 4 | 310348 | Switch, Selector |
|
- | |||||
| 6 | 313231 | End Cap L.h. |
|
- | |||||
| 6 | 254225 | Screw, 8b X 1/4 (4) |
|
- | |||||
| 6 | 313230 | End Cap R.h. |
|
- | |||||
| 7 | WP3390631 | Screw, 10a X 3/8 (2) (Replaces: 309112) |
|
$ 8.25 | |||||
| 7 | 313191 | End Trim R.h. |
|
- | |||||
| 7 | 313190 | End Trim L.h. |
|
- | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | 307828 | Spring, Bezel (4) |
|
- | |||||
| 9 | 307456 | Bezel, Control Knob (4) |
|
$ 31.10 | |||||
| 10 | WP307458 | Knob, Control (4) (Replaces: 307458) |
|
$ 20.07 | |||||
| 12 | 314031 | Light, Indicator (surface Unit) (includes Illus. 22) |
|
$ 62.88 | |||||
| 13 | W10900107 | Switch, Infinite (use W/6`` Surface Unit) (Replaces: 311839) |
|
Immediately | $ 57.63 | ||||
| 13 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 7.89 | |||||
| 13 | W10900107 | Switch, Infinite (use W/8`` Surface Unit) (Replaces: 311838) |
|
Immediately | $ 57.63 | ||||
| 14 | 313102 | Light, Indicator (2) |
|
$ 66.48 | |||||
| 19 | 312604 | Control Panel (screw, 8-18 X 5/8 (4)) |
|
- | |||||
| 19 | WP681414 | Control Panel (screw, 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 8.47 | ||||
| 19 | 3147891 | Control Panel (white) |
|
- | |||||
| 22 | 313101 | Lens, Amber (3) |
|
- | |||||
| 24 | 310410 | Screw |
|
- | |||||
| 24 | 328709 | Knob, Thermostat |
|
- | |||||
| 25 | 328707 | Knob, Selector |
|
- | |||||
| 25 | 310410 | Screw |
|
- | |||||
| 25 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 26 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 26 | 313608 | Shield |
|
- | |||||
| WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 8.30 |
