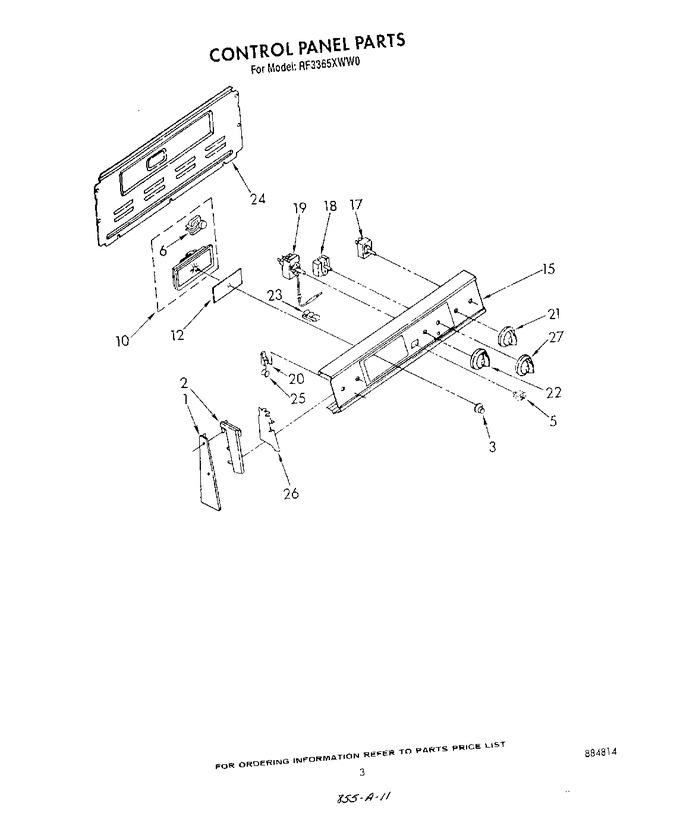

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	313189		End Trim R.h.		Appelez-nous	-
1	313188		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
3	313311		Knob, Spring (3)		Appelez-nous	-
3	330206		Knob, Timer (3)		Appelez-nous	-
5	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 93.95
6	309822		Motor, Timer		Appelez-nous	-
10	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 11.87
10	3149505		Timer, Clock		Appelez-nous	-
12	313513		Glass, Timer		Appelez-nous	-
15	3149840		Panel, Control		Appelez-nous	-
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
17	WP3149400		Switch, Infinite (8`` Unit (2))   (Replaces: 3148954)			Immediately	$ 90.51
17	WP3148952		Switch, Infinite (6`` Unit (2))   (Replaces: 3148952)			Immediately	$ 69.51
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
18	313062		Switch, Selector		Appelez-nous	-
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
19	661150		Thermostat, Oven		Appelez-nous	-
19	311498		Thermostat, Oven (alt.)		Appelez-nous	-
19	310864		Thermostat, Oven (alt.)		Appelez-nous	-
20	314031		Light, Indicator (oven On)				$ 62.88
20	313102		Light, Indicator (surface Unit (2) (includes Illus. 25))				$ 66.48
21	WP3149983		Knob, Control (4) (surface Unit)   (Replaces: 3149983)				$ 24.39
22	310410		Screw (2)		Appelez-nous	-
22	3149987		Knob, Control (thermostat)				$ 25.12
23	313570		Tube Clip		Appelez-nous	-
24	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
24	313195		Rear Cover Control Panel		Appelez-nous	-
25	313101		Lens, Amber (3)		Appelez-nous	-
26	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
26	313608		Shield, Glass (2)		Appelez-nous	-
27	WP688805		Spring (selector)   (Replaces: 688805)			Immediately	$ 8.20
27	3149985		Knob, Control				$ 34.83
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
