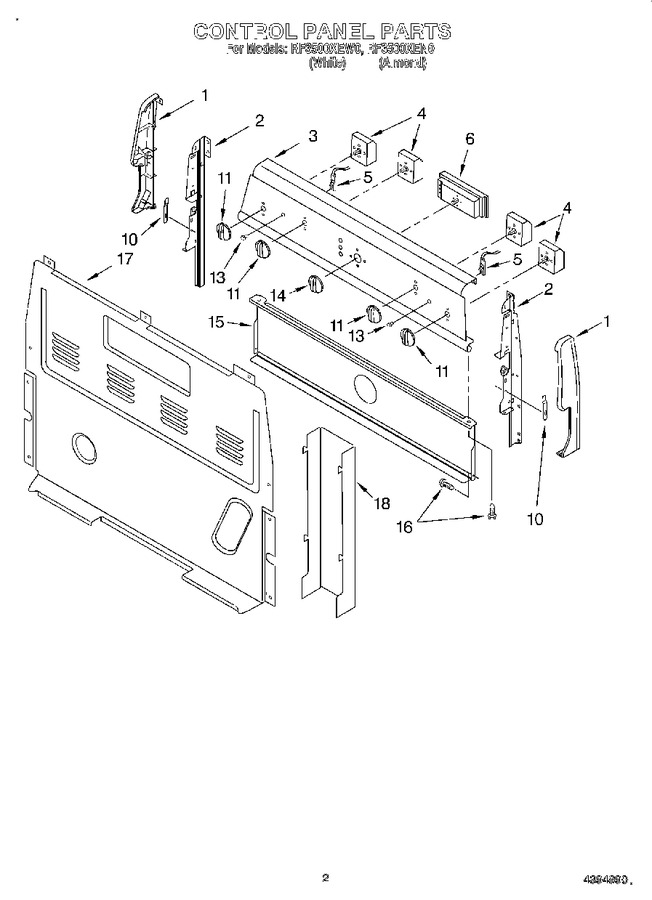

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186189		Endcap (right Hand)		Appelez-nous	-
1	3186188		Endcap (left Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
3	3186164		Panel, Backguard		Appelez-nous	-
4	3196171		Switch, Infinite (screw, Switch (8))		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 52.39
5	313102		Indicator, Surface				$ 66.48
6	3196172		Screw (4)			Immediately	$ 13.47
6	3195186		Control, Oven		Appelez-nous	-
10	3196200		Clip, Spring (2)				$ 10.45
11	WP3196231		Knob, Infinite (4)   (Replaces: 3196231)			Immediately	$ 22.00
13	WP3196068		Lens, Ind. (2)   (Replaces: 3196068)			Immediately	$ 6.26
14	3196213		Knob, Thermostat		Appelez-nous	-
15	3196083		Shield, Heat		Appelez-nous	-
16	W10276642		Screw (4)   (Replaces: 4449746)				$ 6.41
17	WP8272473		Cover, Upper Rear   (Replaces: 3195163)				$ 219.04
17	W11233072		Screw (9)   (Replaces: 3196178)			Immediately	$ 14.72
18	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
18	WPW10326122		Box, Cover   (Replaces: 3195133)				$ 139.60
