01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Toe Panel & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:

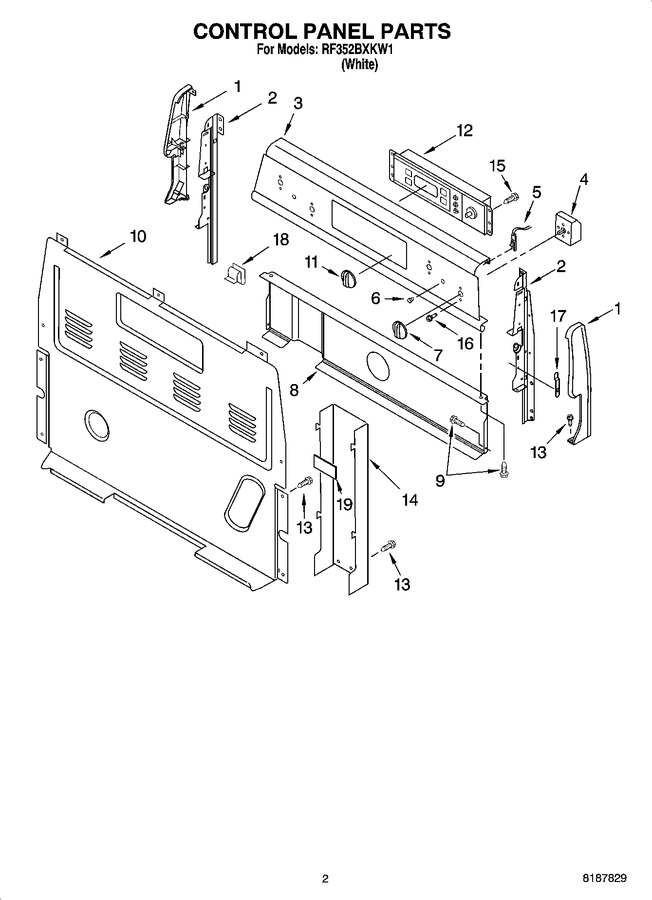

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186188 | Endcap (black Left Hand) |
|
- | |||||
| 1 | 3186189 | Endcap, Right Hand (black) |
|
- | |||||
| 2 | 8523409 | Support, Endcap (right Hand) |
|
- | |||||
| 2 | 8523408 | Support, Endcap (left Hand) |
|
- | |||||
| 3 | 8053611 | Panel, Backguard (black) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (right Front) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | 5500-287 | Switch, Infinite (left Front) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WP8522566 | Knob, Infinite (4) (black) (Replaces: 8522566) |
|
$ 22.29 | |||||
| 8 | 8053912 | Shield, Heat |
|
$ 34.55 | |||||
| 9 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.41 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | 8522616 | Knob (black) |
|
- | |||||
| 12 | 4453710 | Control, Range (black) |
|
$ 0.01 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WPW10326122 | Cover, Box (Replaces: 9757497) |
|
$ 139.60 | |||||
| 15 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | 3196200 | Clip, Spring (2) |
|
$ 10.45 | |||||
| 18 | WP8273564 | Clip, Rear (Replaces: 8273564) |
|
$ 12.66 | |||||
| 19 | 9757309 | Insulator, Card |
|
- |
