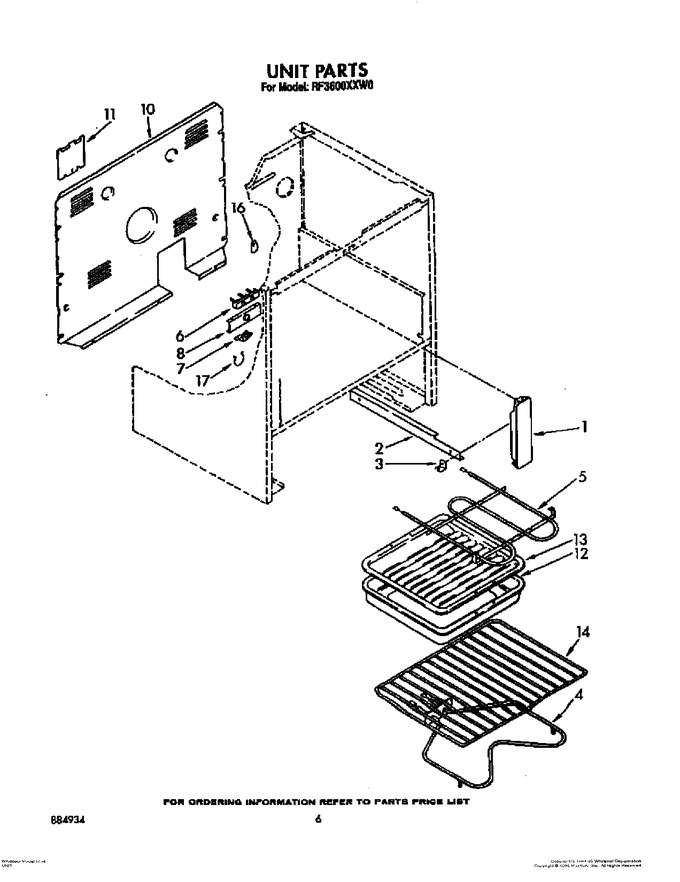

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307981		Bracket, Mounting (2)		Appelez-nous	-
2	3149255		Rail, Rh (includes No.3)		Appelez-nous	-
2	3149256		Rail, Lh (includes No.3)		Appelez-nous	-
2	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
3	3149257		Glide, Front (2)		Appelez-nous	-
4	3150532		Screw, No.10-32 X 7/16 (2)		Appelez-nous	-
4	WP308180		Unit, Bake   (Replaces: 661170)				$ 107.69
5	WP660579		Unit, Broil   (Replaces: 660579)				$ 164.26
5	3150532		Screw, 10-32 X 7/16 (2)		Appelez-nous	-
6	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 30.13
6	98884		Screw, 10-16 X 1 (2)		Appelez-nous	-
6	WP112432		Nut (6)   (Replaces: 112432)				$ 8.63
7	313660		Clip		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
7	308498		Ground Strap		Appelez-nous	-
8	3150190		Bracket, Service		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
10	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 8.47
10	3148975		Cover, Rear		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 8.47
11	307972		Cover, Service		Appelez-nous	-
12	4396923		Pan, Broiler   (Replaces: 3169076)			Immediately	$ 60.71
13	4396923		Rack, Broiler   (Replaces: 3147563)			Immediately	$ 60.71
14	308173		Rack, Oven (straight)		Appelez-nous	-
16	311982		Plate, Cover (2)		Appelez-nous	-
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
17	16515		Harness Clip   (Replaces: 313438)				$ 20.53
	832985		Rack, Cooking (bi-level)		Appelez-nous	-
	WP261869		Citrine White (microwave Liner)   (Replaces: 261869)				$ 27.83
	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 59.89
	350942		Primer				$ 94.14
	350941		Leveler (primer)		Appelez-nous	-
	261900		Citrine White 5 Oz. (m/w Liner)				$ 59.89
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Almond		Appelez-nous	-
	261891		Harvest Gold		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	285368		Platinum		Appelez-nous	-
	786032		Ebony (microwave)		Appelez-nous	-
	242860		Blue Gray		Appelez-nous	-
	978849		Cleaner, (8oz.) Black Glass				$ 15.82
	261582		Grease		Appelez-nous	-
	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 51.81
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 63.51
	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
	261881		Rotisserie Kit		Appelez-nous	-
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	242757		Paint, Touch-up 1 Oz. (oven Liner) (light Gray)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
	LIT3147389		Instructions, Installation		Appelez-nous	-
	LIT3150259		Guide, Use & Care		Appelez-nous	-
	LIT3150657		Wiring Diagram		Appelez-nous	-
	LIT884934		List, Repair Parts		Appelez-nous	-
	350806		18 Ga. 80~c Rating (yellow)		Appelez-nous	-
	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	8212471		Bronzetone   (Replaces: 242756)			Immediately	$ 87.22
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242826		14 Ga. 150~c Rating (white)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	282831		14 Ga. 200~c Rating (red)		Appelez-nous	-
	242832		14 Ga. 200~c Rating (yellow)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	242829		12 Ga. 150~c Rating (red)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
	261890		Harvest Gold		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
