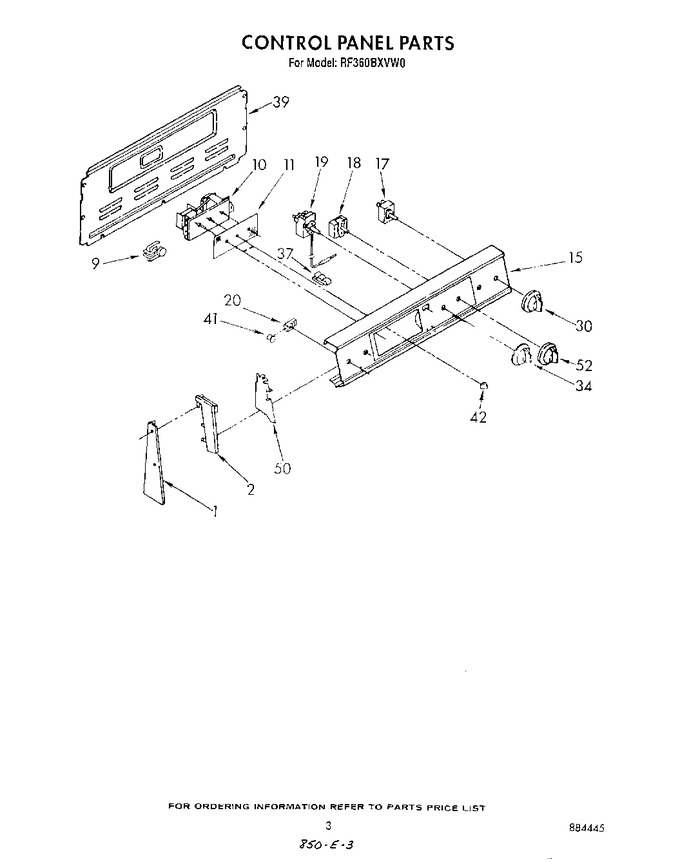

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
9	309822		Motor, Timer		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
10	3148851		Timer, Auto		Appelez-nous	-
11	313513		Glass, Timer		Appelez-nous	-
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
15	3148835		Panel, Control		Appelez-nous	-
17	WP3148952		Switch, Infinite (6`` Element (2))   (Replaces: 3148952)			Immediately	$ 69.51
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.89
17	WP3149400		Switch, Infinite (8`` Element (2))   (Replaces: 3148954)			Immediately	$ 90.51
18	312288		Switch, Selector		Appelez-nous	-
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.89
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
19	3148933		Thermostat, Oven				$ 181.60
20	313102		Light, Indicator (surface Unit) (2) (includes Illus. 41)				$ 66.48
20	314031		Light, Indicator (oven On)				$ 62.88
20	3148719		Light, Indicator (locked)		Appelez-nous	-
30	330177		Knob, Control (4)		Appelez-nous	-
34	310410		Screw (2)		Appelez-nous	-
34	330175		Knob, Thermostat		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
39	313195		Rear Cover Control Panel		Appelez-nous	-
41	313101		Lens, Amber (5)		Appelez-nous	-
42	313311		Spring, Knob		Appelez-nous	-
42	330206		Knob, Timer (3)		Appelez-nous	-
50	313608		Shield, Glass (2)		Appelez-nous	-
50	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
52	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
52	330178		Knob, Selector		Appelez-nous	-
