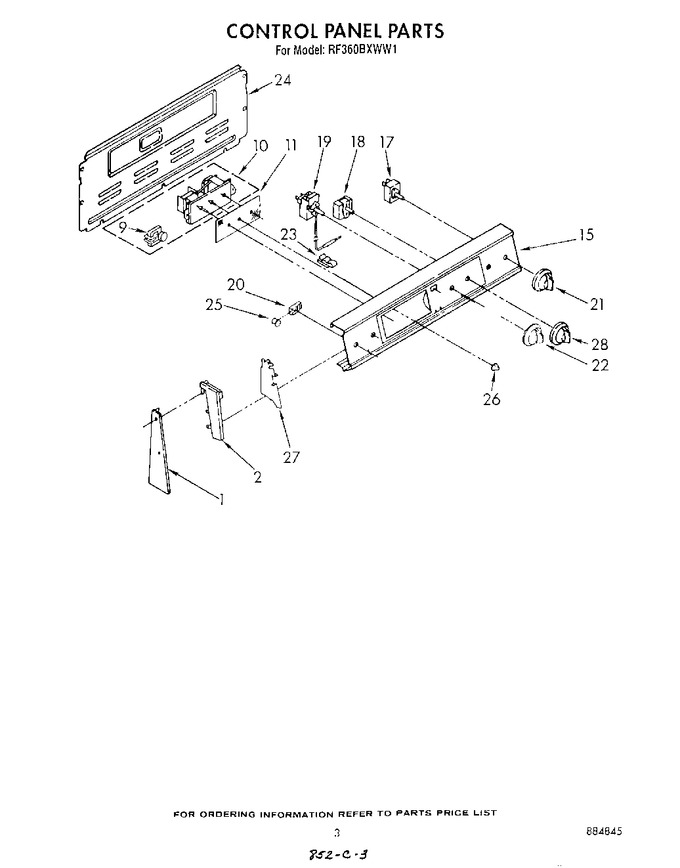

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
9	309822		Motor, Timer		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
10	3149834		Timer, Auto		Appelez-nous	-
11	313513		Glass, Timer		Appelez-nous	-
15	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
15	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
15	3148835		Panel, Control		Appelez-nous	-
17	5500-287		Switch, Infinite (6`` Element (2))   (Replaces: 3148951)			Immediately	$ 52.39
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 7.34
17	5500-287		Switch, Infinite (8`` Element (2))   (Replaces: 3148953)			Immediately	$ 52.39
18	312288		Switch, Selector		Appelez-nous	-
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 7.34
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 7.60
19	3148933		Thermostat, Oven				$ 181.60
20	313102		Light, Indicator (surface Unit (2) (includes Illus. 25))				$ 66.48
20	314031		Light, Indicator (oven On)				$ 62.88
20	3148719		Light, Indicator (locked)		Appelez-nous	-
21	WP3149983		Knob, Control (4)   (Replaces: 3149983)				$ 23.23
22	3149988		Knob, Thermostat		Appelez-nous	-
23	313570		Tube Clip		Appelez-nous	-
24	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.85
24	313195		Rear Cover Control Panel		Appelez-nous	-
25	313101		Lens, Amber (5)		Appelez-nous	-
26	313311		Spring, Knob		Appelez-nous	-
26	330206		Knob, Timer (3)		Appelez-nous	-
27	313608		Shield, Glass (2)		Appelez-nous	-
27	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.72
28	3149986		Knob, Selector				$ 23.95
