SELECT A DIAGRAM

02 - Cooktop


03 - Control Panel


04 - Door And Drawer


05 - Oven , Literature And Optional


06 - Section


07 - Wiring Harness

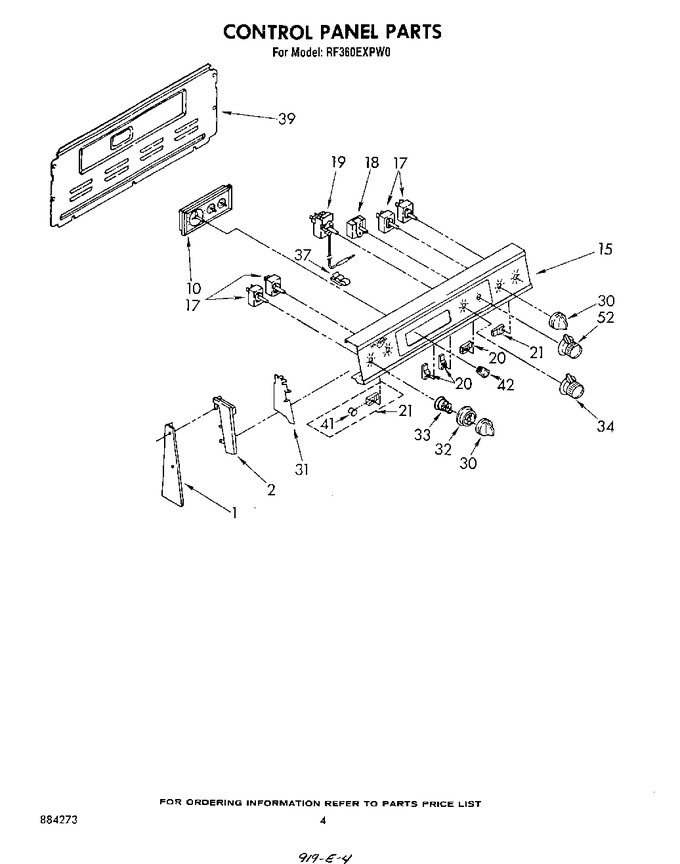

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313190		End Trim L.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 8.25
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
1	313191		End Trim R.h.		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
10	311997		Timer, Auto		Appelez-nous	-
15	312604		Panel, Control (screw, 8-18 X 5/8 (4))		Appelez-nous	-
15	WP681414		Panel, Control (screw, 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 8.47
15	3147896		Panel, Control (white)		Appelez-nous	-
17	314215		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
17	W10900107		Switch, Infinite (use W/8`` Surface Unit (1))   (Replaces: 311838)			Immediately	$ 57.63
17	W10900107		Switch, Infinite (use W/6`` Surface Unit (3))   (Replaces: 311839)			Immediately	$ 57.63
18	314215		Screw, 8-32 X 1/4 (2)		Appelez-nous	-
18	310009		Switch, Selector (5 Position)		Appelez-nous	-
19	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 8.30
19	313860		Thermostat, Oven Pyro		Appelez-nous	-
20	314031		Light, Indicator (3) (oven, Lock, Clean) (includes Illus. 41)				$ 62.88
21	313102		Light, Indicator (surface Unit) (2) (includes Illus. 41)				$ 66.48
30	WP307458		Knob, Control (4)   (Replaces: 307458)				$ 20.07
31	313608		Shield, Control Panel (2)		Appelez-nous	-
31	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
32	307456		Bezel (4)				$ 31.10
33	307828		Spring (4)		Appelez-nous	-
34	310410		Screw (2)		Appelez-nous	-
34	328709		Knob, Control		Appelez-nous	-
37	313570		Tube Clip		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 8.47
39	313195		Rear Cover Control Panel		Appelez-nous	-
41	313101		Lens, Amber (5)		Appelez-nous	-
42	308440		Knob, Timer (3)		Appelez-nous	-
52	328707		Knob, Control		Appelez-nous	-
52	WP688805		Spring   (Replaces: 688805)			Immediately	$ 8.20

    View Diagram in Separate Window       Print Part List
